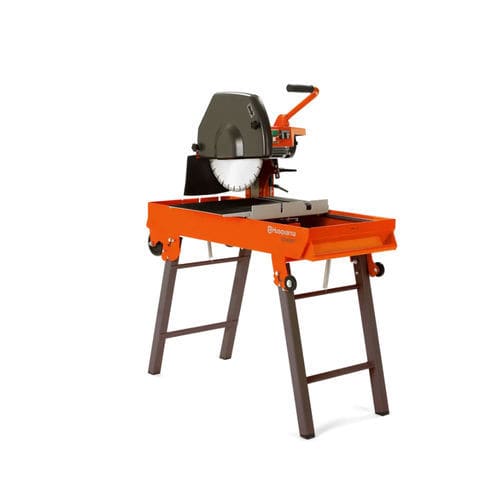

Concrete cutter TS 400 F

Product description
TS 400 F is a universal masonry table saw designed for cutting bricks, blocks and similar masonry materials. It provides a maximum single-pass cutting depth of 125 mm and can reach deeper cuts up to 230 mm using step cutting. The machine supports plunge and bevel cuts up to 45° and is built on a single-piece frame with integrated guide rails. Foldable legs and four wheels enable one-person transport and setup.

Key features

• Semi-automatic foldable legs for one-person setup
• Plunge and bevel cutting at 45° and standard 90° cuts
• Slurry sedimentation with collection tray to extend pump life
• Reliable motor suitable for continuous jobsite use
• Four wheels for easy transport on site
• Heavy-duty water pump with electrical quick connection for easy replacement
• Wide range of cutting depths with precise height adjustment for deep step cutting (up to 230 mm)
• Protected guide rails integrated into the frame

Tech data (summary)
Rated input power: 2.2 kW
Cutting depth, max: 125 mm (up to 230 mm by step cutting)
Blade diameter, max: 400 mm
Max cutting length: 700 mm
Article description: MASONRY SAW TS 400 F 3 hp | 400mm | 50 Hz | EU | w/bl.
Art nr: 965 14 81‑01

Technical specifications

• Model: TS 400 F
• Rated input power: 2.2 kW (product variant available: 1.5 kW / 2.2 kW)
• Cutting depth (max): 125 mm (single pass)
• Max step cutting depth: up to 230 mm
• Blade diameter (max): 400 mm
• Max cutting length: 700 mm
• Bevel cutting: up to 45°
• Frame: single-piece frame with integrated guide rails
• Legs: semi-automatic foldable legs for one-person handling
• Transport: four wheels for on-site mobility
• Water handling: slurry collection tray and heavy-duty pump; electrical quick connection for pump replacement
• Use: cutting bricks, blocks and masonry materials
