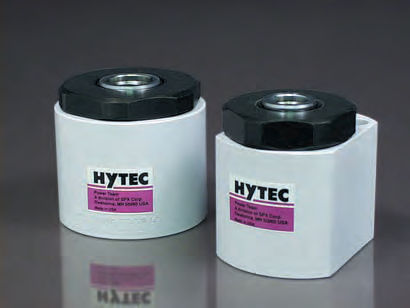

Hydraulic cylinder 100 series

pistondouble-actingsingle-acting

Our center-hole cylinders can be used as single- or double-acting workholding devices. Mounting can be done in any of several ways: use the thru-holes for mounting from the top, use the tapped holes in the bottom for mounting from underneath, or secure with a single stud or rod through the center. The pistons are threaded to accept the optional crowned threaded inserts, used when the cylinder contacts the work directly. • Single- or double-acting • Multiple mounting options • Heavy-duty return spring • Converts manual clamping to hydraulics • Plated, threaded piston rods
