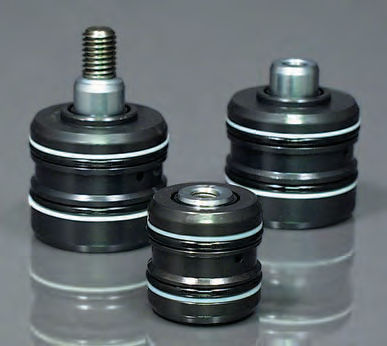

Pull cylinder 1008 series

hydraulicpistonsingle-acting

These "Pull" cylinders retract when hydraulically pressurized. They were created to permit the user to design a cylinder into a fixture while maintaining the replaceability and long life of a heat treated, corrosion resistant cylinder body. Typical applications of these cylinders include installation behind fixture plates or buried in tombstones where they can supply clamping force without taking up valuable fixture space. These pull cylinders were designed for cartridge mounting in a cavity supplied by the user. The required cavity is simply a cylindrical bore with a properly deburred pressure port intersecting it, providing the hydraulic fluid connection. They are for single acting systems only where the force for cylinder return (extension) is supplied manually or through a spring designed into the application by the user. A return spring that can be built into the application is available. • Compact design • Manifold mounting eliminates tubing • Threaded, plated piston rod • Power-Tech™ treated body for long wear and corrosion resistance • Rod wiper to exclude contaminants • Single-Acting
