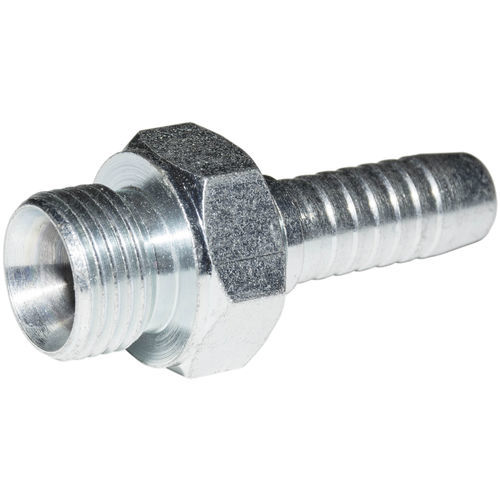

Hydraulic fitting CMthreadedDINcarbon steel
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded
- Norms
- DIN
- Material
- carbon steel, metal, galvanized
- Gender
- male
- Other characteristics
- standard, high-pressure, external thread, internal thread
- Diameter
Min.: 6 mm
(0.236 in)Max.: 20 mm
(0.787 in)
Description
- According to DIN standards
- metal-to-metal with internal reverse 60° cone
- Angle of 0°
- Mating part for fitting DKM, DKR, DKRO
The CM fitting according to the DIN connection standard with an external metric thread. Sealing by pairing metal surfaces with a 60° internal reverse cone. Fitting CM is a mating part for fittings DKM, DKR, DKRO.
Specifications:
- Sealing - internal reverse cone 60°.
- Internal metric thread from M14x1,5 to M32x2.
- Turnkey nuts S14...S36.
- Thickness of Cover - galvanic 8 - 12 microns.
