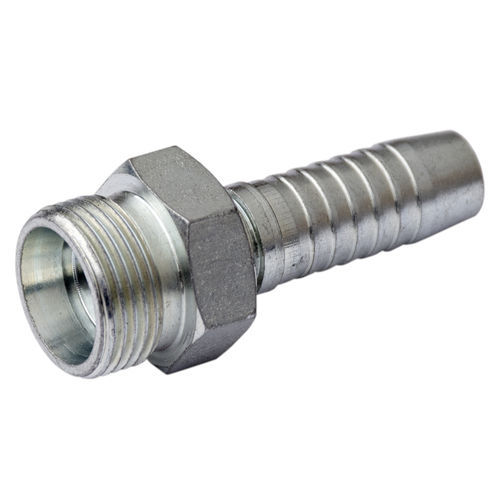

Hydraulic fitting CE seriesthreadedangleDIN
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded
- Configuration
- angle
- Norms
- DIN
- Material
- metal, carbon steel, galvanized
- Gender
- male
- Other characteristics
- standard, high-pressure, external thread
- Diameter
Min.: 6 mm
(0.236 in)Max.: 25 mm
(0.984 in)
Description
- Metal-to-metal with internal reverse 24° cone
The CEL (light series) and CES (heavy series) fitting According to the DIN standard with external metric threads. Sealing by mating metal surfaces with a 24° internal reverse cone. The CEL fitting is the return part for DKL and DKOL fittings, CES is DKS and DKOS.
Specifications:
- Sealing - internal reverse cone 24°.
- Internal metric thread from M12x1,5 to M42x2.
- Turnkey nuts S14...S46.
- Thickness of Cover - galvanic 8 - 12 microns.
