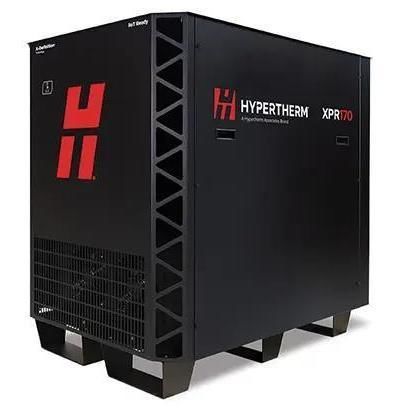

Plasma cutting system XPR170®

for metalfor aluminumfor stainless steel

Overview
Delivering next generation X-Definition® processes from very thin up to mid-range thicknesses, the XPR170® expands plasma capabilities and opportunities. With unmatched X-Definition cut quality on mild steel, stainless steel, and aluminum, XPR170 increases cut speed, dramatically improves productivity, and reduces operating costs. New ease-of-use features and engineered system optimization make XPR® easier to run with minimal operator intervention while ensuring optimal performance and reliability.

Benefits

• Industry-leading X-Definition cut quality
  • Advances HyDefinition® by blending new technology with refined processes for next generation X-Definition cutting on mild steel, stainless steel, and aluminum
  • Consistent ISO range 2 results on thin mild steel
  • Extended ISO range 3 cut quality on thicker mild steel and stainless steel
  • Superior stainless steel cut quality
  • Superior results on aluminum using Vented Water Injection™ (VWI)
• Optimized productivity and reduced operating costs
  • Significantly reduced operating costs compared to previous generation technology
  • Increased cut speeds on thicker materials
  • Dramatic improvement in consumable life on mild steel applications
  • Thicker piercing capability than competitive plasma systems
  • Extended Pilot Arc (EPA) eliminates manual edge‑finding, streamlining setup and minimizing downtime
  • XPR automated gouging minimizes or eliminates grinding versus carbon arc gouging, producing weld-ready parts faster with cleaner gouge profiles
• Engineered system optimization and ease of use
  • Ramp down error protection increases realized consumable life
  • Automatic system monitoring and specific troubleshooting codes for improved maintenance and service prompts
  • EasyConnect™ torch lead and one-hand torch-to-receptacle connection for fast change-outs
  • QuickLock™ electrode for easy consumable replacement
  • Web interface accessible via Wi‑Fi and Ethernet LAN in the power supply for system monitoring and service
  • Built-in IIoT via Ethernet LAN and MTConnect® enables remote data access
  • Manual Set-Mode retains last setup for faster, repeatable workflows without CNC/PLC integration

Advanced process control and delivery
Four console options are available: Core™, CorePlus™, Vented Water Injection™ (VWI™) and OptiMix™. All consoles can be fully controlled through the CNC for high productivity and ease of use.

Gas-connect console gases/fluids (summary)
Console: Core / CorePlus / VWI (Vented Water Injection) / OptiMix
O2 / N2 / Air: X / X / X / X
Ar: - / X / X / X
F5 / Ar / H2O: - / - / X / X
H2-N2-Ar mixing: - / - / - / X

Operating data (selected)
Mild steel — Pierce capacity (mm/in): Argon-assist 40 mm / 1–9/16 in; Standard air shield gas 35 mm / 1–3/8 in. Severance: 60 mm / 2–3/8 in.
Stainless steel — Pierce capacity: 22 mm / 7/8 in. Severance: 38 mm / 1–1/2 in.
Aluminum — Pierce capacity: 25 mm / 1 in. Severance: 38 mm / 1–1/2 in.

Notes on selected cutting examples
Cutting speeds and recommended gases depend on console selection and amperage. Multiple process charts are provided for mild steel, stainless steel and aluminum across 30 A, 50 A, 80 A, 130 A and 170 A conditions with shield and plasma gas options (Core, CorePlus, VWI, OptiMix).

Caractéristiques / spécifications techniques

• Maximum open-circuit voltage (U0): 360 VDC
• Maximum output current: 170 A
• Maximum output power: 35.7 kW
• Output voltage: 50 VDC – 210 VDC
• 100% duty arc voltage: 210 V
• Duty cycle rating: 100% at 35.7 kW, 40° C (104° F)
• Operational ambient temperature range: -10° C – 40° C (14° F – 104° F)
• Power factor: 0.98 at 35.7 kW
• Cooling: Forced air (Class F)
• Insulation: Class H
• EMC emissions classification (CE models only): Class A
• Lift points: Top lift eye weight rating 454 kg (1,000 lb.); bottom lift truck slots
