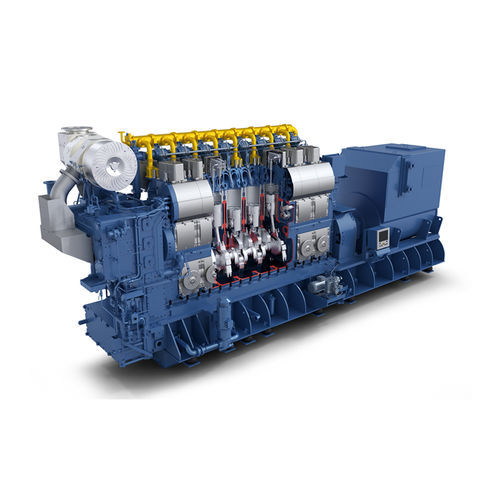

Dual-fuel engine H35DF seriesgasdieselmulti-cylinder
Add to favorites
Compare this product
Characteristics
- Type
- diesel, gas
- Number of cylinders
- multi-cylinder
- Technology
- turbocharged
- Product applications
- for generator sets, marine
- Other characteristics
- 4-stroke, dual-fuel, Miller cycle
- Power
Max.: 4,320 kW
(5,873.56 hp)Min.: 2,779 kW
(3,778.39 hp)- Rotational speed
720 rpm, 750 rpm
(4,523.8934 rad.min-1, 4,712.389 rad.min-1)- Weight
Max.: 90.1 t
(99.32 us ton)Min.: 34.7 t
(38.25 us ton)- Length
8,890 mm, 9,486 mm
(350 in, 373.5 in)- Width
2,300 mm
(90.6 in)- Height
4,367 mm, 4,538 mm
(171.9 in, 178.7 in)
Description
Bore
350 mm
Stroke
400 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.4 g/kWh
Catalogs
HYUNDAY HiMSEN ENGINE
83 Pages
