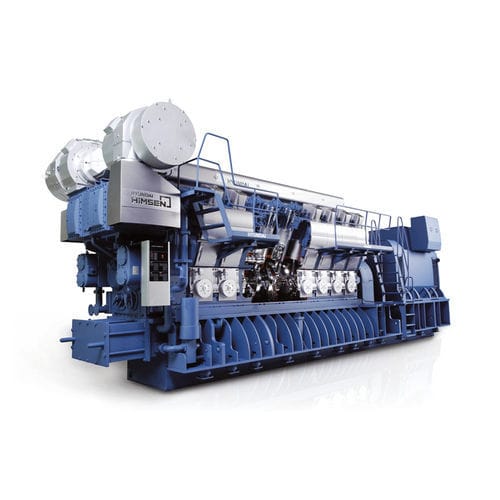

Diesel engine H32/40 seriesmulti-cylinderfor generator setsmarine
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, marine
- Emissions level
- Tier 3, Tier 2
- Other characteristics
- 4-stroke
- Power
Max.: 4,500 W
(6.12 hp)Min.: 2,880 W
(3.92 hp)- Rotational speed
720 rpm, 750 rpm
(4,523.8934 rad.min-1, 4,712.389 rad.min-1)- Weight
Max.: 89.1 t
(98.22 us ton)Min.: 33.7 t
(37.15 us ton)- Length
Max.: 11,189 mm
(440.5 in)Min.: 8,890 mm
(350 in)- Width
2,300 mm
(90.6 in)- Height
3,959 mm, 4,130 mm
(155.9 in, 162.6 in)
Description
Bore
320 mm
Stroke
400 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.5 g/kWh
