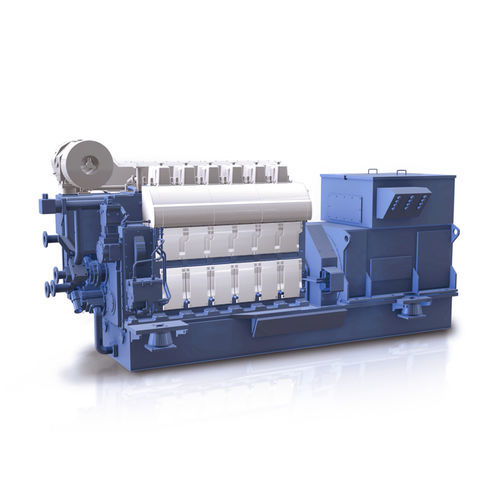

Diesel engine H17/28U(E) series6-cylinderfor generator setsfor marine applications
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder
- Product applications
- for generator sets, for marine applications
- Emissions level
- Tier 2, Tier 3
- Other characteristics
- 4-stroke, compact
- Power
618 kW, 660 kW, 705 kW, 805 kW
(0.96 hp, 1.09 hp, 840.25 hp, 897.35 hp)- Rotational speed
900 rpm, 1,000 rpm
(5,654.8668 rad.min-1, 6,283.1853 rad.min-1)- Weight
6.9 t, 7.1 t, 13 t, 13.8 t
(7.61 us ton, 7.83 us ton, 14.33 us ton, 15.21 us ton)- Length
4,859 mm, 4,983 mm
(191.3 in, 196.2 in)- Width
1,460 mm
(57.5 in)- Height
2,323 mm, 2,393 mm
(91.5 in, 94.2 in)
Description
Bore
170 mm
Stroke
280 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.6 g/kWh
