- Hyundai Heavy Industries-Marine Engine

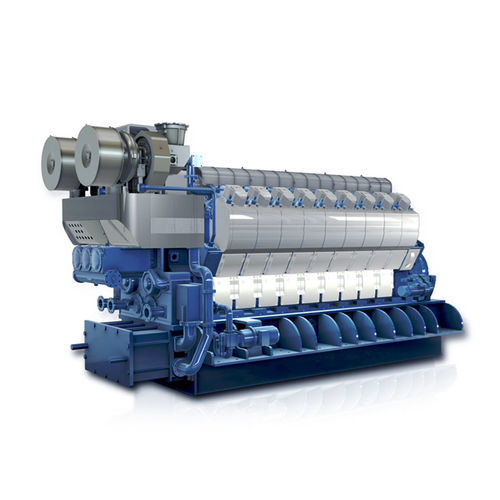

Diesel engine H25/33 seriesmulti-cylinderfor generator setsmarine
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, marine
- Emissions level
- Tier 2, Tier 3
- Other characteristics
- 4-stroke
- Power
Max.: 2,700 kW
(3,670.98 hp)Min.: 1,368 kW
(1,859.96 hp)- Rotational speed
720 rpm, 750 rpm, 900 rpm, 1,000 rpm
(4,523.8934 rad.min-1, 4,712.389 rad.min-1, 5,654.8668 rad.min-1, 6,283.1853 rad.min-1)- Weight
Max.: 45 t
(49.6 us ton)Min.: 20.2 t
(22.27 us ton)- Length
Max.: 8,181 mm
(322.1 in)Min.: 6,676 mm
(262.8 in)- Width
1,660 mm
(65.4 in)- Height
2,961 mm, 3,241 mm, 3,371 mm
(116.6 in, 127.6 in, 132.7 in)
Description
Bore
250 mm
Stroke
330 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.6 g/kWh
Catalogs
Other Hyundai Heavy Industries-Marine Engine products
4-Stroke Engine
