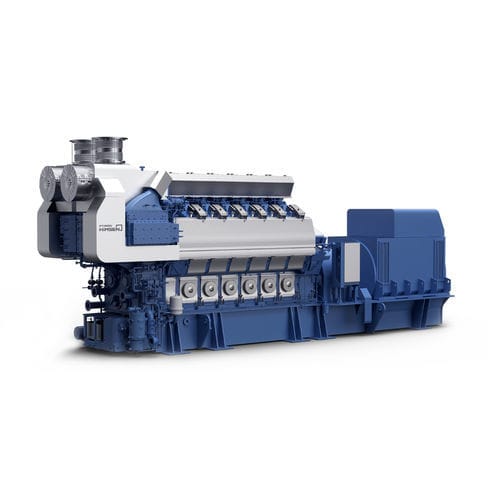

Diesel engine H32C seriesmulti-cylinderfor generator setsmarine
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, marine
- Emissions level
- Tier 3, Tier 2
- Other characteristics
- 4-stroke
- Power
Min.: 3,474 kW
(4,723.32 hp)Max.: 5,400 kW
(7,341.95 hp)- Rotational speed
720 rpm, 750 rpm
(4,523.8934 rad.min-1, 4,712.389 rad.min-1)- Weight
Min.: 46 t
(50.71 us ton)Max.: 96.5 t
(106.37 us ton)- Length
9,242 mm, 10,052 mm, 10,862 mm, 11,572 mm
(363.9 in, 395.7 in, 427.6 in, 455.6 in)- Width
1,660 mm
(65.4 in)- Height
3,327 mm, 3,492 mm
(131 in, 137.5 in)
Description
Bore
320 mm
Stroke
450 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.5 g/kWh
