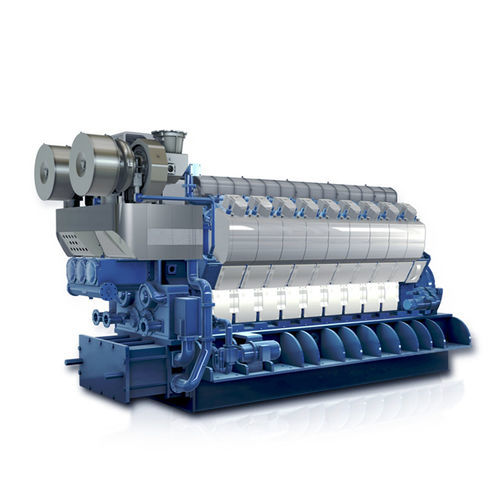

Diesel engine H25/33V series12-cylinder16-cylinder14-cylinder
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 12-cylinder, 16-cylinder, 14-cylinder
- Technology
- in-line
- Product applications
- for generator sets, for marine applications
- Emissions level
- Tier 3, Tier 2
- Other characteristics
- 4-stroke, compact
- Power
4,080 kW, 4,760 kW, 5,440 kW, 6,120 kW, 6,800 kW
(5,547.25 hp, 6,471.8 hp, 7,396.34 hp, 8,320.88 hp, 9,245.42 hp)- Rotational speed
900 rpm, 1,000 rpm
(5,654.8668 rad.min-1, 6,283.1853 rad.min-1)- Weight
Min.: 33.5 t
(36.93 us ton)Max.: 79.5 t
(87.63 us ton)- Length
Min.: 8,858 mm
(348.7 in)Max.: 10,931 mm
(430.4 in)- Width
1,660 mm
(65.4 in)- Height
3,750 mm
(147.6 in)
Description
Bore
250 mm
Stroke
330 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.6 g/kWh
Catalogs
HYUNDAY HiMSEN ENGINE
83 Pages
