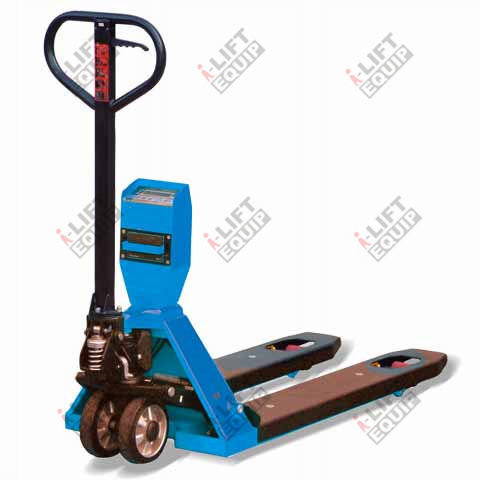

Hand pallet truck RHM series

water-resistantwith printerscale

RHM/RHMP SERIES Manual Pallet Jack Scale Truck

Overview
This pallet truck scale system is built and approved according to legal-for-trade norms, allowing use of the pallet truck scale for commercial transactions and invoicing clients based on weight. To protect client interests, these legal-for-trade systems are verified to be accurate independent of temperature and humidity changes, position of weight or floor conditions, and protected against distortion from radio frequency signals. NTEP Approved Legal for Trade Class III truck. Conforms to EN1752-2 and according to RoHS directive.

Features

• Capacity: 2000 kg (4400 lb)
• Graduation: 1 kg up to 2000 kg
• Exchangeable battery module providing approximately 80 operation hours between charging
• Supplied with battery charger adaptor
• IP65 enclosure for the weighing electronics
• Level control device that displays a message when the system is more than 2 degrees out of level

Options

• Printer: thermal printer head (needs no ink)
• Paper width: 53 mm
• Alternative graduation: 0.5 kg up to 1500 kg

Models (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1210401 | RHM20S | 2000 (4400) | 85 (3.3) | 205 (8.1) | 1150 (45.3) | 555 (21.9)
1210402 | RHM20L | 2000 (4400) | 85 (3.3) | 205 (8.1) | 1150 (45.3) | 690 (27.2)
1210403 | RHMP20S | 2000 (4400) | 85 (3.3) | 205 (8.1) | 1150 (45.3) | 555 (21.9)
1210404 | RHMP20L | 2000 (4400) | 85 (3.3) | 205 (8.1) | 1150 (45.3) | 690 (27.2)

Technical specifications

• Legal-for-trade approval: NTEP Class III, conforms to EN1752-2
• Capacity: 2000 kg (4400 lb)
• Standard graduation: 1 kg (alternative 0.5 kg up to 1500 kg with option)
• Battery: exchangeable module, ~80 hours operation between charges; charger adaptor included
• Electronics enclosure protection: IP65
• Level control: display message if system is >2° out of level
• Compliance: RoHS directive
• Available model variants: RHM20S, RHM20L, RHMP20S, RHMP20L (see models table for fork lengths and overall fork widths)
