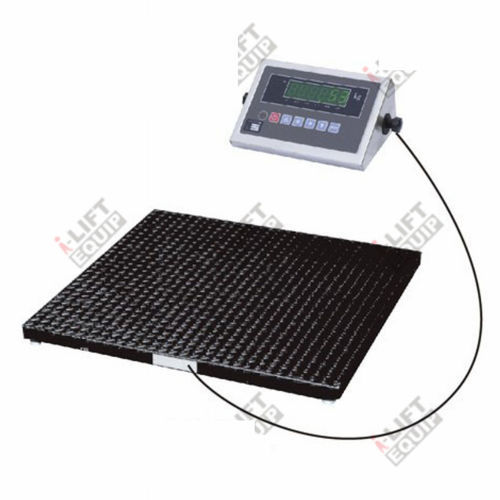

Electronic weighing scale NA series

platformdigitalwith separate indicator

Product overview

• Steel diamond plate platform with heavy welded channel support for industrial applications.
• Overload protection up to 150% of capacity; adjustable leveling feet; suitable for pit mounting or free-standing installation.
• Four alloy tool-steel potted load cells for stable, distributed weighing.
• Durable powder-coat finish; deluxe stainless-steel indicator (standard); 6-digit 7-segment display; bi-directional RS232 port.
• Operator controls: Zero, Tare, Unit, Net/Gross and Print. Readout convertible between lb and kg.
• Optional slopes available (two slopes optional equipment): LE36, LE48, LE60.

Models / Technical table
i-LIFT No. | Model No. | Measuring Range kg(lb.) | Indexing Accuracy kg(lb.) | Sensor Capacity kg(lb.) | Sensor Number | Height mm(in.)
1210601 | NA1000 | 1000 (2200) | 0.2 (0.4) | 1000 (2200) | 4 | 70 (2.8)
1210602 | NA2000A | 2000 (4400) | 0.5 (1.1) | 2000 (4400) | 4 | 70 (2.8)
1210603 | NA2000B | 2000 (4400) | 0.5 (1.1) | 2000 (4400) | 4 | 70 (2.8)
1210604 | NA5000A | 5000 (11000) | 1 (2.2) | 2500 (5500) | 4 | 70 (2.8)
1210605 | NA5000B | 5000 (11000) | 1 (2.2) | 2500 (5500) | 4 | 70 (2.8)

Technical specifications

• Platform: steel diamond plate surface with welded channel support.
• Overload protection: up to 150% of capacity.
• Mounting: pit mounted or free standing; adjustable leveling feet.
• Load cells: four alloy tool-steel potted load cells (4 sensors).
• Indicator: deluxe stainless-steel indicator (standard); 6-digit 7-segment display; bi-directional RS232 port.
• Controls: Zero, Tare, Unit, Net/Gross, Print; units convertible between kg and lb.
• Finish: durable powder coat.
• Optional accessories: slopes available (LE36, LE48, LE60).
• Available model ranges: 1 000 kg, 2 000 kg, 5 000 kg variants with accuracies and sensor capacities listed above.
• Height above floor: 70 mm (2.8 in) for listed models.
