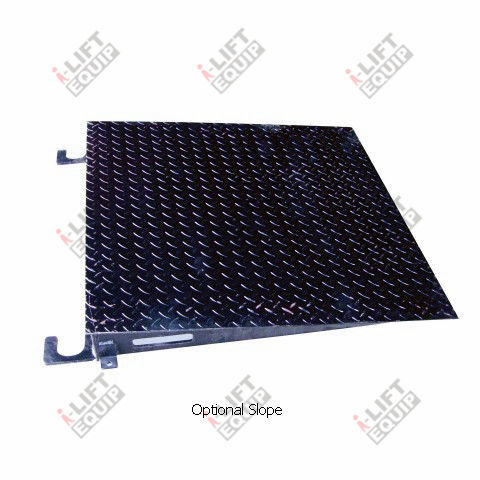

Steel loading ramp LE series

Product
Slopes

Series
For LE Series

Models and specifications
i-LIFT NO. | Model No. | Length(mm) | Width(mm) | Angle(°) | Net Weight(kg) | Construction
1211103 | LE60 | 915 (36) | 1500 (59) | 4.45 | 77 (170) | Steel
1211102 | LE48 | 915 (36) | 1220 (48) | 4.45 | 63 (139) | Steel
1211101 | LE36 | 915 (36) | 915 (36) | 4.45 | 48 (106) | Steel

Features / technical specifications

• Series: LE series
• Models: LE36, LE48, LE60
• Length (all models): 915 mm (36)
• Width: LE36 – 915 mm (36); LE48 – 1220 mm (48); LE60 – 1500 mm (59)
• Angle (all models): 4.45°
• Net Weight: LE36 – 48 kg (106); LE48 – 63 kg (139); LE60 – 77 kg (170)
• Construction: Steel
