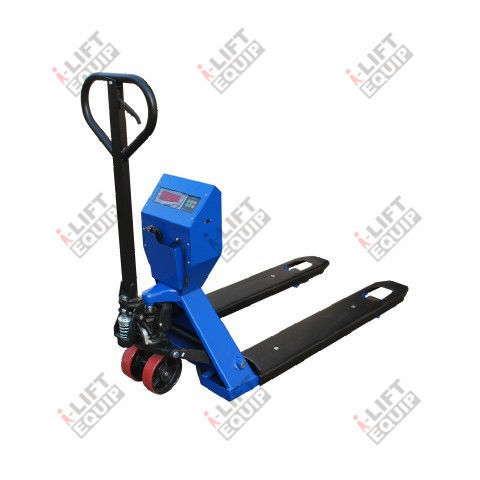

Pallet scale with rechargeable battery HPWJ series

kglb

Product
HPWJ SERIES Manual Pallet Jack Scale Truck

Key features

• Rollers/Wheels: Nylon, Polyurethane, Rubber.
• Typical function, easy operation.
• Low energy consumption design, wide voltage input.
• AC/DC power supply (built-in rechargeable battery 6V/4AH) with auto power off at low battery.
• Materials and specifications are subject to change without notice.
• Type S is for forks width 555 mm. Type L is 690 mm.

Standard Function

• Weight accumulation / accumulation display / accumulation clear function.
• AC/DC (built-in rechargeable battery 6V/4AH) power supply. Auto power off at low battery.

Models (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1211301 | HPW20JS | 2000 (4400) | 85 (3.3) | 205 (8.1) | 1150/1220 (45.3/48) | 555 (21.9)
1211302 | HPW20JL | 2000 (4400) | 85 (3.3) | 205 (8.1) | 1150/1220 (45.3/48) | 690 (27.2)

Technical specifications

• Series: HPWJ series
• Available models: HPW20JS, HPW20JL
• Capacity: 2000 kg (4400 lb)
• Minimum fork height: 85 mm (3.3 in)
• Maximum fork height: 205 mm (8.1 in)
• Fork length: 1150 / 1220 mm (45.3 / 48 in)
• Overall forks width: 555 mm (21.9 in) for Type S; 690 mm (27.2 in) for Type L
• Rollers/Wheels materials: Nylon, Polyurethane, Rubber
• Power supply: AC/DC with built-in rechargeable battery 6V/4AH
• Battery feature: Auto power off at low battery
• Functions: Weight accumulation, accumulation display, accumulation clear
• Design notes: Low energy consumption, wide voltage input; materials and specifications subject to change
