Stackable precision weight SCW series

Product overview

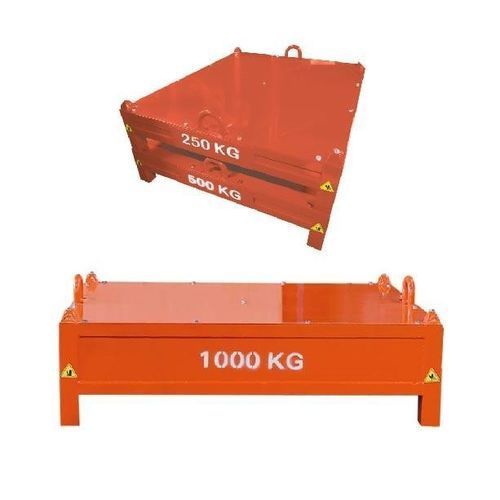

SCW N Weights for lifting tests are robust, steel-clad calibration weights designed for safe, flexible, and accurate load testing and calibration applications. Available in 250 kg, 500 kg, 1000 kg, and 2000 kg models, they can be freely combined to achieve different total load requirements, offering excellent adaptability for various testing scenarios. Featuring a stackable design, SCW N Weights help save valuable storage space when not in use. Each unit is equipped with forklift holes for easy handling by forklift trucks, as well as lifting hoops (Ø75 mm) that allow safe lifting by crane to reach the required position. With a stable structure and well-balanced dimensions, SCW N Weights are easy to position and provide a high level of operational safety. Their durable construction makes them a reliable and practical solution for industrial calibration, inspection, and load verification tasks.

Features

• Can be combined freely to achieve different weights.
• Save space when not in use (stackable design).
• Lift by forklift through forklift hole.
• Lift by crane through lifting lugs (Ø75 mm) to reach place needed.
• Easy to position and safer operation.

Models / Technical table

• SCW2000N | 2000 (4400) | 1200 x 1000 x 640 mm (in.) | Fork hole H1: 100 mm (4) | Accuracy: 0.005 | Surface: Powder Coating
• SCW1000N | 1000 (2200) | 1200 x 1000 x 420 mm (in.) | Fork hole H1: 100 mm (4) | Accuracy: 0.005 | Surface: Powder Coating
• SCW500N | 500 (1100) | 1200 x 1000 x 310 mm (in.) | Fork hole H1: 100 mm (4) | Accuracy: 0.005 | Surface: Powder Coating
• SCW250N | 250 (550) | 1200 x 1000 x 310 mm (in.) | Fork hole H1: 100 mm (4) | Accuracy: 0.005 | Surface: Powder Coating

Technical specifications

• Material: steel-clad construction.
• Available nominal weights: 250 kg, 500 kg, 1000 kg, 2000 kg.
• Combinable units to obtain various total loads.
• Stackable design for space-saving storage.
• Forklift holes for handling by forklift trucks; fork hole height H1 = 100 mm (4 in.).
• Lifting hoops / lugs diameter: Ø75 mm for crane lifting.
• Overall dimensions vary by model as listed in the Models / Technical table.
• Displayed accuracy: 0.005 (unit as shown on product table).
• Surface treatment: Powder Coating.
