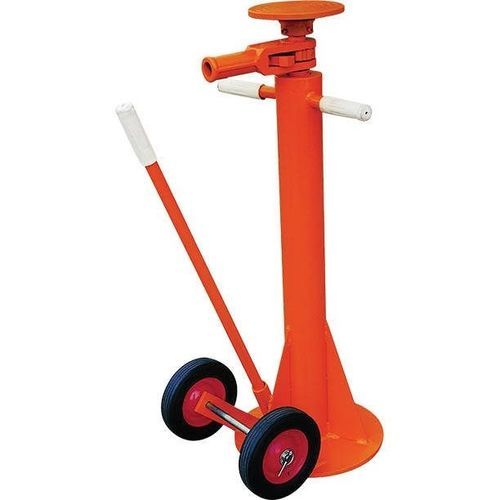

Floor jack TJ series

hydraulic45 tons22 tons

Product overview
TJ-Series Trailer Stabilizer Jacks are heavy-duty support jacks designed to stabilize and support trailers when disconnected from a tractor unit. They keep the trailer steady and safe during loading and unloading and are offered in models with static capacities up to 45,000 kg (45 t).

Key features

• Available capacities: 22.7 or 45 metric tons
• Intended to unload and stabilize trailers when disconnected from a tractor unit
• Robust, stable construction for heavy-duty use
• Multiple model variants (TJ50, TJ60, TJ70) with different service ranges and capacities

Models and technical table
i-LIFT NO. | Model No. | Service Range mm(in.) | Static Capacity kg(lb.) | Lifting Capacity kg(lb.) | Cap Size mm(in.) | Base Plate mm(in.)
TJ50 | TJ50 | 1007–1300 | 45000 | 18000 | φ204 | φ370
TJ60 | TJ60 | 1007–1300 | 45000 | 22700 | 153×612 | —
TJ70 | TJ70 | 1112–1300 | 22700 | | 125×125 | φ357

Technical specifications

• Series: TJ-Series
• Models: TJ50, TJ60, TJ70
• Service range: TJ50/TJ60 1007–1300 mm; TJ70 1112–1300 mm
• Static capacity: up to 45,000 kg (TJ50, TJ60); 22,700 kg (TJ70)
• Lifting capacity: TJ50 18,000 kg; TJ60 22,700 kg; TJ70 not specified
• Cap size / base plate dimensions vary by model (see table)
• Application: stabilizing and supporting disconnected trailers during loading/unloading
