Toe jack HM series

hydraulic5 ton15 tons

Product overview

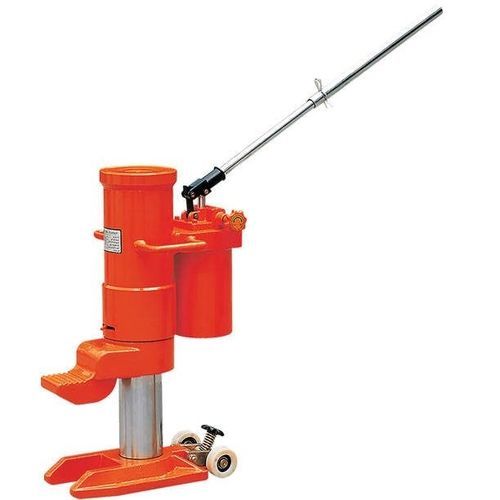

The HM Series Hydraulic Toe Jack is a compact hydraulic lifting tool designed for low-clearance and heavy-load industrial applications. Available in three models (HM50, HM100, HM250) with capacities of 5,000, 10,000 and 15,000 kg respectively, it supports machinery installation, maintenance and positioning operations. The unit features solid steel construction with an epoxy finish, a discharge screw for controlled lowering, and a 180° rotating pump lever for operation in confined spaces. The jack lifts from both the toe and the head and is operable in any orientation; model HM250 includes caster wheels for easier relocation.

Details

• Hydraulic toe jack in three capacities: 5,000 kg (HM50), 10,000 kg (HM100), 15,000 kg (HM250)
• Solid, compact steel construction
• Epoxy finish for surface protection
• Discharge screw for safe, controlled lowering
• 180° rotating pump lever for flexible operation in tight spaces
• Designed for heavy-load, low-clearance lifting
• Can lift from toe and from head; usable in any position
• HM250 equipped with caster wheels for mobility

Technical table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Lifting Range of Foot mm(in.) | Lifting Range of Head mm(in.) | Max. Lever Force kg(lb.) | Net Weight kg(lb.)
— | HM50 | 5000 (11000) | 25-230 (1-9) | 368-573 (14.5-22.6) | 38 (83.6) | 25 (55)
— | HM100 | 10000 (22000) | 30-260 (1.2-10.2) | 420-650 (16.5-25.6) | 40 (88) | 35 (77)
— | HM250 | 15000 (33000) | 58-273 (2.3-10.7) | 505-720 (19.9-28.3) | 40 (88) | 102 (224.4)

Technical specifications

• Capacities: 5,000 kg (HM50), 10,000 kg (HM100), 15,000 kg (HM250)
• Lifting range (foot): HM50: 25–230 mm (1–9 in); HM100: 30–260 mm (1.2–10.2 in); HM250: 58–273 mm (2.3–10.7 in)
• Lifting range (head): HM50: 368–573 mm (14.5–22.6 in); HM100: 420–650 mm (16.5–25.6 in); HM250: 505–720 mm (19.9–28.3 in)
• Max. lever force: HM50: 38 kg (83.6 lb); HM100: 40 kg (88 lb); HM250: 40 kg (88 lb)
• Net weight: HM50: 25 kg (55 lb); HM100: 35 kg (77 lb); HM250: 102 kg (224.4 lb)
• Construction: solid, compact steel frame
• Finish: epoxy coating for surface protection
• Safety: discharge screw for controlled lowering
• Operation: 180° rotating pump lever for use in confined spaces
• Versatility: lifts from toe and head; usable in any position
• Mobility: caster wheels included on HM250
