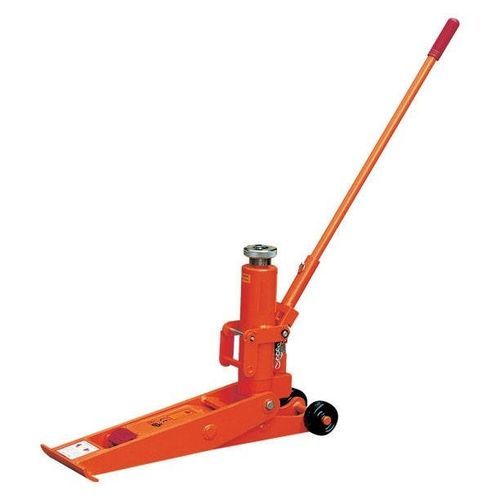

Floor jack HFJ series

hydraulic4 tonfor trucks

Overview
The HFJ-Series forklift jack (models HFJ400 and HFJ700A) is a heavy-duty floor jack designed for lifting forklifts and low-profile lift trucks. Available in 4000 kg and 7000 kg capacities, it features a low pick-up point, a two-position lift pad for restricted clearance areas and a compact, foldable structure for transport. The unit incorporates high-end hydraulic components including a pump with seal kits and an overload valve. Complies with CE and ANSI standards.

Features

• Capacity: 4000 kg (HFJ400) or 7000 kg (HFJ700A)
• Two elevating positions on the saddle for reaching low-clearance areas
• Low pick-up point suitable for low-profile lift trucks
• High-end hydraulic components with seal-kits and overload valve
• Hand-lever lowering control for precise descent
• Foldable design for easier transport and storage

Models and Dimensions

• HFJ400 — Rated capacity: 4000 kg (8800 lb); Min. lifting height: 65 mm (2.5 in); Max. lifting height: 406 mm (16 in); Width: 203 mm (8 in)
• HFJ700A — Rated capacity: 7000 kg (15400 lb); Min. lifting height: 65 mm (2.5 in); Max. lifting height: 420 mm (16.5 in); Width: 250 mm (10 in)

Technical specifications

• Series: HFJ-Series
• Models: HFJ400, HFJ700A
• Rated capacities: 4000 kg and 7000 kg
• Minimum lifting height: 65 mm (2.5 in)
• Maximum lifting heights: HFJ400 = 406 mm (16 in); HFJ700A = 420 mm (16.5 in)
• Widths: HFJ400 = 203 mm (8 in); HFJ700A = 250 mm (10 in)
• Low pick-up point for use under low-profile lift trucks
• Two-position lift pad/saddle for hard-to-reach places
• High-end hydraulic pump and components with seal-kits
• Hydraulic pump equipped with overload valve
• Hand-lever lowering control
• Foldable design for transport
• Standards: Complies with CE and ANSI
