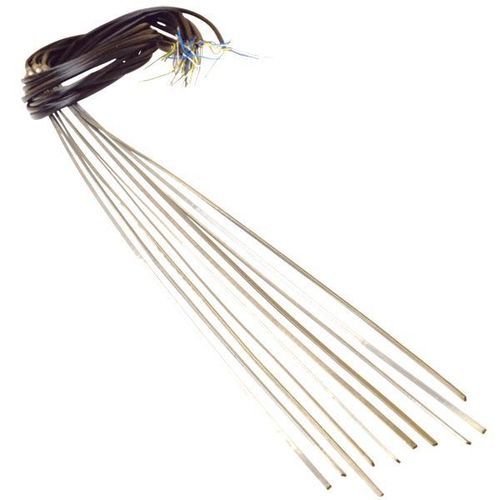

Coil heater

Product overview
Straight coil heaters are developed for small-dimension metallic pipe heating. IHP’s straight coil heaters are manufactured in stainless steel AISI321 and are available in several power classes to suit different pipe diameters and process requirements. Equipping the heater with an internal thermocouple provides accurate temperature control and extends service life.

Control and Use
The heater can be integrated with IHP's PID control cabinet to form a complete heating system with precise temperature control, ramp functions, adjustable maximum temperature and programmable steps with ramp and set point. The straight coil heater can be mounted beneath a pipe or spiralized around it depending on diameter and customization. Note that once spiralized the heater will not tolerate new bends after the first heating. IHP can provide installation support and preventive maintenance services.

Related products

• Coil heaters silicone 200°C
• Heating tape digital 250°C
• Heating tape digital 450°C
• Coil heaters 750°C
• Nozzle heaters coiled 750°C
• Mineral insulated heating cable 1000°C

Technical specification
Material: Stainless steel AISI321 with TIG welding
Heating wire: NiCr80/20
Insulation: compact MgO
PTFE insulated nickel lead wires length: 1000 mm
Leads protection: PFA-strand leads, stainless steel braided cable, galvanized metal hose
Leakage Current (cold): < 0,5 mA
Wattage tolerance: +5% -10%
Resistance tolerance: +10% -5%
Dielectric Strength: 1000 V
Insulation (cold 1000Vcc): > 10 MΩ
Voltage: 230V
Maximum sheath temperature of heating element: 750°C
Maximum cable temperature: 260°C
Minimum bending radius (internal): 10 mm
Connection exits: Axial, Radial, Tangential
Standard models with and without thermocouple Fe/CuNi (type J)
Other dimensions on request
Certain products may undergo temporary modifications to their original form to facilitate efficient packaging and safe transportation. These adjustments are designed to be easily reversed upon receipt by the customer.

Profiles available
○ Round profiles - 1,8 / 2,5 / 3 / 3,5 / 4 / 4,5 / 5 / 5,5 / 6 / 6,5 / 7 / 7,5 / 8 / 8,5
☐ Square profiles - 1,8 x 1,8 / 3 x 3 (-0,0 +0,15) / 3,5 x 3,5 / 4,5 x 4,5 / 5 x 7 / 6 x 6 / 7,5 x 7,5 / 8 x 8
▭ Rectangular profiles - 2,2 x 4,2 (-0,0 +0,15) / 5,5 x 12 (-0,15 +0,10) / 6 x 16 (-0,15 +0,10)

Standard range (selection of table rows)
Size(mm) - Total length (mm) incl. cold length 90mm - Power (W) @ 230V
○ 3 - 400 - 180
- 550 - 250
- 650 - 315
- 800 - 400
- 950 - 500
- 1150 - 630
- 1500 - 800
- 2000 - 1250
- 2500 - 1350
○ 4 - 400 - 200
- 550 - 315
- 750 - 400
- 950 - 500
- 1150 - 630
- 1350 - 750
- 1650 - 1000
- 2000 - 1250
- 2500 - 1500
☐ 3 x 3 - 200 - 175
- 240 - 175
- 300 - 225
- 350 - 250
- 390 - 215
- 400 - 300
- 450 - 350
- 500 - 400
- 540 - 325
- 600 - 500
- 650 - 400
- 700 - 500
- 740 - 470
- 800 - 600
- 900 - 700
- 940 - 610
- 1000 - 800
- 1140 - 630
- 1200 - 900
- 1500 - 750
- 1800 - 1100
- 2000 - 1400
- 2500 - 1500
☐ 6 x 6 - 210 - 200
- 250 - 250
- 300 - 300
- 400 - 400
- 500 - 500
- 600 - 600
- 700 - 650
- 800 - 750
- 900 - 850
- 1000 - 950
- 1250 - 1100
- 1500 - 1250
- 1750 - 1600
- 2000 - 1750
- 2500 - 1850
- 3000 - 2000
- 3500 - 2500
- 3750 - 3500
▭ 2,2 x 4,2 - 200 - 175
- 250 - 190
- 330 - 200
- 380 - 225
- 430 - 250
- 480 - 300
- 560 - 350
- 630 - 400
- 700 - 450
- 750 - 550
- 860 - 625
- 950 - 675
- 1000 - 700
- 1200 - 800
- 1400 - 950
- 1600 - 1100
- 1800 - 1200
- 2000 - 1300
- 2250 - 1400
- 2500 - 1500
▭ 5 x 7 - 210 - 200
- 250 - 250
- 300 - 300
- 400 - 400
- 500 - 500
- 600 - 600
- 700 - 650
- 800 - 750
- 900 - 850
- 1000 - 950
- 1250 - 1100
- 1500 - 1250
- 1750 - 1600
- 2000 - 1750
- 2500 - 1850
- 3000 - 2000
- 3500 - 2500
