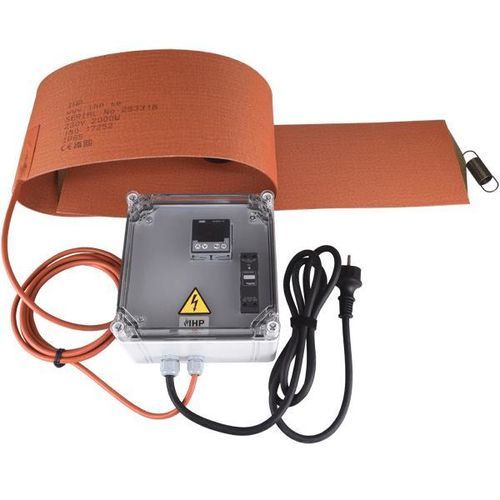

Belt drum heater 180-1725 series

oilfor liquidsfor water

Description
Ready to Go Series silicone drum heaters are designed for outdoor and damp environments (class IP65). They are mounted externally on steel drums and provide indirect heating for industrial liquids and semi-solids.

Applications

• Suitable for heating water, fats, butter, sugar, glucose, chocolate, oils, diesel, lubricants and other industrial liquids
• Designed for use on 200 L steel drums (ø570 mm)
• Outdoor and humid conditions thanks to IP65 protection

Related products

• Drum insulation jackets
• Side drum heater 90°C
• Drum heater digital 90°C
• Silicone drum heaters 120°C
• Base drum heater 150°C
• Heating jacket drum digital 200°C
• Drum heaters food grade 220°C
• High temperature drum heaters 220°C

Technical specification

• Construction: double insulated for enhanced safety
• Power supply: 230 V
• Controller: digital, adjustable range 0–200°C (included)
• Protection class: IP65
• Moisture and chemical resistant silicone rubber
• Cable: two metre supply cable
• High surface load; flexible silicone rubber construction
• Mounting: easy installation using spring fixing
• Safety note: the heater must never overlap or be operated when not mounted on a steel drum

Standard range

• 180-17252 — 1665 x 180 mm | 2000 W | 230 V | ø570 mm | 200 litres
• 180-17253 — 1665 x 125 mm | 1400 W | 230 V | ø570 mm | 200 litres
