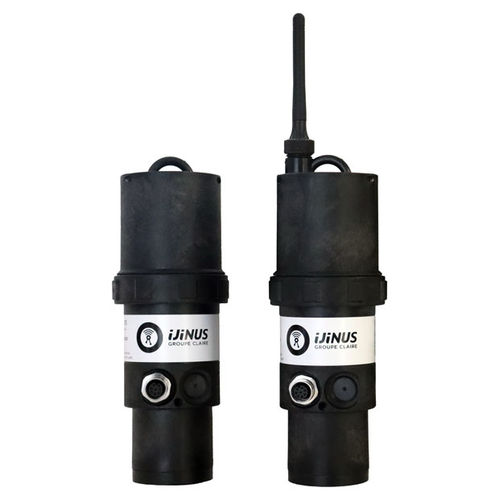

Radar level sensor LNR06V4for waterfor wastewaterRS-485
Add to favorites
Compare this product
Characteristics
- Technology
- radar
- Medium
- for water, for wastewater
- Interface
- RS-485, Modbus, NB-IoT, 2G, 4G, LTE-M
- Applications
- rugged, river, for basin, for CSO monitoring, for marine applications, for monitoring, manhole
- Approvals
- CE, FCC, IC-certified
- Other characteristics
- flange-mount, compact, high-precision, rugged, programmable, ATEX, corrosion-resistant, cloud connected, IP68, with temperature measurement, smart, Internal datalogger, with data logger, miniature
- Level range
Max.: 6 m
(19'08" )Min.: 0.15 m
(0'05" )- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Radar level sensor with integrated data logger, battery and communication.
The LNR06V4 sensor is suitable for permanent or temporary installations, for measurements up to 6M. It has radio and cellular (2G / 4G (LTE-M – NB-IoT) communication options.
Perfectly suited for outdoor use, even when exposed to weather conditions.. It is recommended for monitoring :
- Medium : natural water
- streams : preventive management of low water and floods
- rainwater storage or retention basins : monitoring
- inlets and outlets of wastewater treatment plantsThe measurement of water height allows the calculation of flows by conversion, to meet the regulatory obligations.
Inputs : 1x External power supply (5Vcc…30Vcc), 2x contacts 100Hz, 1x Modbus
Outputs : 1x Power supply (internal battery or switch), 1x Open Drain, 1x Modbus
Rugged and IP68 housing (tested at 1 bar during 30 days)
