magnetic laboratory shaker / analog / for beakers / hot plate
RH basic

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

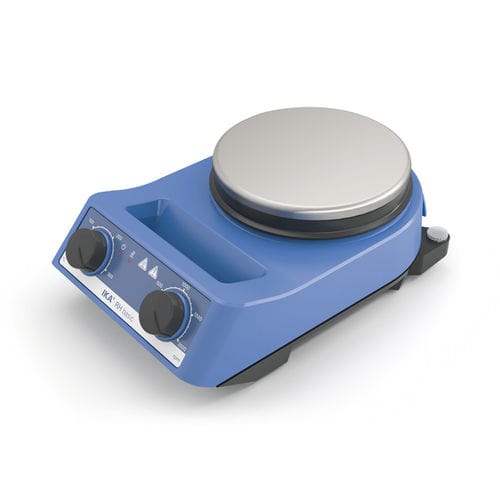

magnetic laboratory shaker / analog / for beakers / hot plate magnetic laboratory shaker / analog / for beakers / hot plate - RH basic
{{requestButtons}}

Characteristics

  • Type:

    magnetic

  • Display:

    analog

  • Product applications:

    for beakers

  • Other characteristics:

    hot plate, high-speed, stainless steel

  • Rotational speed:

    Min.: 100 rpm (628 rad.min-1)

    Max.: 2,000 rpm (12,566 rad.min-1)

Description

Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.

• Soft-start of the stirring motor
• Includes M 10 thread for a support rod
• Strong magnetic field and wide speed range for volumes up to 15 liters

Technical Data
Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 15 l
Motor rating output: 2 W
Direction of rotation: left
Speed display set-value: scale
Speed control: Turning knob
Speed range: 100 - 2000 rpm
Stirring bar length: 20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): 28 +K
Heat output: 600 W
Temperature display set-value: scale
Temperature unit: °C
Heating temperature range: 50 - 320 °C
Heat control: scale
Temperature setting range: 0 - 320 °C
Connection for ext. temperature sensor: ETS-D5
Characteristics in the medium with temperature sensor: 1l M50 Oil at H1500
Heating rate medium: 6 K/min
Adjustable safety circuit: 100 - 360 °C
Set-up plate material: stainless steel 1.4301
Set-up plate dimensions: Ø 135 mm
Dimensions (W x H x D): 160 x 100 x 250 mm
Weight: 3.135 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
Voltage: 230 / 115 / 100 V
Frequency: 50/60 Hz
Power input: 620 W
