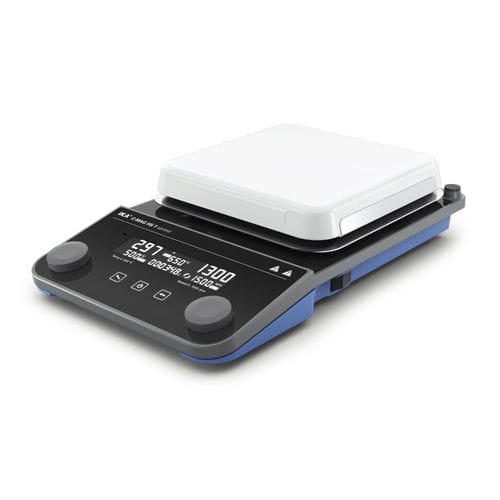

Magnetic laboratory shaker C-Mag HS 7 control
digitalhot plate

magnetic laboratory shaker
magnetic laboratory shaker
magnetic laboratory shaker
magnetic laboratory shaker
Add to favorites
Compare this product


Characteristics

Type
magnetic
Display
digital
Other characteristics
hot plate
Rotational speed

Min.: 50 rpm (314 rad.min-1)

Max.: 1,500 rpm (9,425 rad.min-1)

Description

The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm. IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer. IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently. PT1000 temperature sensor included. Technical Data Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O): 20 l Motor rating output: 9 W Direction of rotation: right / left Speed display set-value: LCD Speed display actual-value: LCD Speed control: Turning knob Speed range: 50 - 1500 rpm Setting accuracy speed: 10 rpm Stirring bar length: 30 - 80 mm Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): 2 +K Heat output: 1000 W Temperature display set-value: LCD Temperature display actual-value: LCD Temperature unit: °C Heating temperature range: room temp. - 500 °C Heat control: Turning knob Temperature setting range: 0 - 500 °C Temperature setting resolution of heating plate: 5 K Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6 Temperature setting resolution of medium: 1 K Adjustable safety circuit: 100 - 650 °C Set-up plate material: ceramic Set-up plate dimensions: 180 x 180 mm

VIDEO
