Oil mist collector OILMATIC

coalescingcentralized

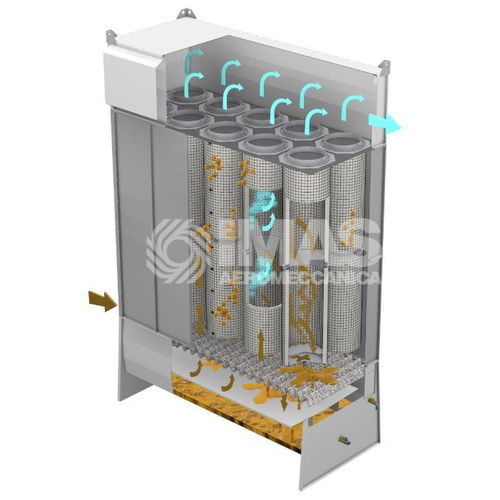

COALESCENCE PURIFIER SERIES OIL-OILMATIC-OILJET The coalescence candle purifiers series OIL, represent the best technology available today for the filtration of oil mists, aerosols and vapors. The so-called "candles" are the heart of the system, constituted by special fibers or microfibers wound with progressive density and closely compressed, for a thickness of several centimeters, around a perforated metallic cylinder and enclosed by an outer mesh. The cylindrical shape of the candle, crossed from outside towards inside by the air flow to be purified, generates a rotary motion of the micrometric particles, which, also due to the Brownian movement, start to be collected and to coalesce, grow in fibers intersections transforming the flow from gaseous to liquid and finally drain by gravity out of the filter medium. Through the clapet siphons placed in the lower flange of the candle, the oil collected will drain in the pre-chamber below. It is possible to achieve a very high filtration efficiency, greater than 99,9%, values that is very difficult to reach with conventional depurators, especially considering that our systems will not need maintenance or replacement of the filtering elements. IMAS AEROMECCANICA produces 4 different types of coalescence purifiers, according to specific uses: OILMATIC, Suitable for treating mists and / or transformable vapors by condensation or agglomeration, generated by mechanical processing such as hot or cold metal forging, gear toothing, broaching, snagging, heat treatments, etc… The technical features supplied allow it to work continuously without interruptions, in fact,
