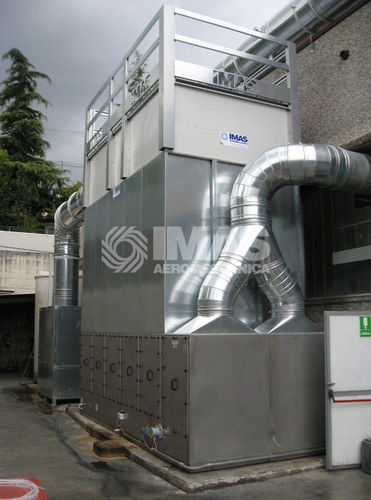

Oil mist collector FCGI series

coalescingcentralized

OIL-FCGI are highly efficient coalescence purifiers, specific for the treatment of vapors and mists of vaporized or burnt oil emitted during cold or hot forging processes. It contains a candle filter media, placed inside the central body, made with galvanized panels sealed with a special anti-oil sealant. It also has a battery of panel prefilters and another consisting of pocket filters suitable for the filtration of any graphite, stearate or other solid components that could clog the spark plugs. These purifiers are suitable for outdoor installation. They are complete with differential pressure switches for each filtration stage and anti-explosio panels certified ATEX EX II D with EC type examination certificate no. EUM1_10_ATEX_0298. The “FCGI-FCG” Series purifiers are high efficiency coalescing filters, specific for the treatment of vapors and mists of vaporized or burnt oil emitted during cold or hot forging processes. All the purifiers, in the standard configuration, are equipped with: Agglomeration pre-filters in corrugated metal structure; Collecting tank with double chamber anti bubbling, drainage system, drain tap with safety clapet valve; Level gauge for overflow alarm with remote display signal; Digital differential pressure with ΔP display and dual intervention threshold; Certified venting panels ATEX EX II D with CE type examination certificate no. EUM1_10_ATEX-0298;
