Thread rolling machine IMC-3R series

hydraulichigh-precision

Overview

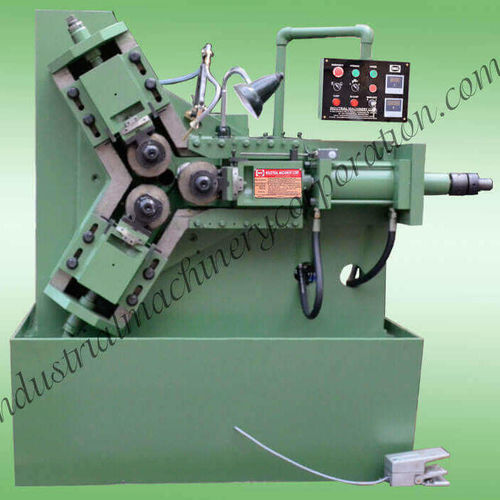

IMC 3-roll hydraulic pipe thread rolling machines (IMC-3R series) produce high-precision threads on scaffolding pipes and bolts for mass production. The hydraulic drive and the concentric action of three rollers at 120° ensure workpiece stability, superior geometrical accuracy and improved surface finish. The 3-roll design eliminates the support blade, enabling delicate profiles and better finishing.

Applications

• Rolling scaffolding pipe threads
• Threading bolts and shafts
• Lapping and high-precision rolling jobs
• Mass production of scaffolding pipe jacks and solid jack screws

Available Options

• Thread Type: METRIC, UNC, BSW, ACME, Two Start, Three Start, Others, Don't Know Exactly
• Maximum Thread Length Required: 50 MM, 100 MM, 150 MM, 200 MM, Unlimited, Others, Don't Know Exactly
• Maximum Diameter of the Job: 25 MM, 50 MM, 75 MM, Others, Don't Know Exactly
• Purchase Timing: Immediately, Within a week, Within 15 days, Within a month, Others, Don't Know Exactly
• Expected Price: user-specified input field on the page

Models and technical specifications

• Series: IMC-3R series (models: IMC-3R-25, IMC-3R-50, IMC-3R-75)
• Work Range (IMC-3R-25): Outside Diameter 8–25 MM (0.31–0.98 in), Thread Length in Feed 38 MM (1.5 in), Thread Length Through Feed: Indefinite
• Work Range (IMC-3R-50): Outside Diameter 25–50 MM (0.98–1.97 in), Thread Length in Feed 50 MM (2 in), Thread Length Through Feed: Indefinite
• Work Range (IMC-3R-75): Outside Diameter 32–75 MM (1.26–2.95 in), Thread Length in Feed 75 MM (3 in), Thread Length Through Feed: Indefinite
• Roll Dies (IMC-3R-25): Max Outside Dia. 140, Max Inside Dia. 60, Spindle Box 40
• Roll Dies (IMC-3R-50): Max Outside Dia. 140, Max Inside Dia. 60, Spindle Box 40
• Roll Dies (IMC-3R-75): Max Outside Dia. 170, Max Inside Dia. 80, Spindle Box 54
• Motor for Roll Spindle: IMC-3R-25: 3 H.P.; IMC-3R-50: 3 H.P.; IMC-3R-75: 7.5 H.P.
• 3 Phase AC (Hydraulic System): IMC-3R-25: 1 H.P.; IMC-3R-50: 1 H.P.; IMC-3R-75: 3 H.P.
• Coolant Pump: 0.1 H.P. (models IMC-3R-25 / IMC-3R-50 / IMC-3R-75)
• Typical applications: rolling scaffolding pipe threads, rolling bolts, lapping jobs with high precision, mass-production of scaffolding pipe jacks and solid jack screws

Notes
Suitable for high-volume production, the IMC-3R family covers different diameter ranges via dedicated models. The 120° concentric roller action maximizes stability and dimensional accuracy while improving surface finish.
