Thread rolling machine IMC series

hydraulic

Product overview

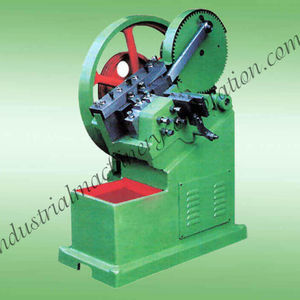

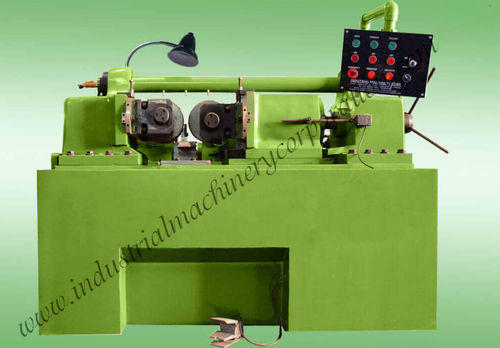

Hydraulic two-roll thread rolling machines designed for cold forming of external screw threads on blanks. Suitable for producing screws, bolts and similar fasteners in high-volume or intermittent production. Machines operate by pressing blanks between thread rolling dies driven by hydraulic and spindle systems.

Key benefits & features

• Cold forming process (no chip removal) for consistent thread geometry.
• High production speed with adjustable feed and rolling length.
• Hydraulic actuation and robust spindle power for stable rolling force up to 40 tons depending on model.
• Low maintenance design and pre-production testing to ensure consistent output.
• Customisable dies and settings to suit bolts, bars and rods of various diameters and pitches.

Available options (selection values shown on page)

• Thread type: METRIC, BSW, UNC, ACME, Trapezoidal, Two Start, Three Start, Others, Don't Know Exactly
• Maximum thread length required: 50 mm, 100 mm, 150 mm, 200 mm, Unlimited, Others, Don't Know Exactly
• Maximum diameter of the job: 25 mm, 40 mm, 50 mm, 80 mm, 100 mm, 120 mm, Others, Don't Know Exactly
• Purchase timeline: Immediately, Within a week, Within 15 days, Within a month, Others, Don't Know Exactly
• Expected price: (input field / customer provided)

General description
The IMC hydraulic thread rolling machines are engineered for industrial production with options across models IMC-25 to IMC-120 to match different pitch, diameter and force requirements. Machines feature easy operator controls, proven build quality and the ability to run indefinite through-feed length on applicable models. Units are supplied with tested rolling dies and can be configured with hydraulic and spindle power combinations to meet process needs.

Specifications

• Hydraulic machine models: IMC-25 | IMC-40 | IMC-50 | IMC-80 | IMC-100 | IMC-120
• Max. pitch (mm): 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 8
• Max. diameter (feed) (mm): 25 | 40 | 50 | 80 | 100 | 125
• Max. diameter (through feed) (mm): 16 | 28 | 35 | 40 | 64 | 76
• Max. rolling length (feed) (mm): 80 | 150 | 150 | 150 | 150 | 150
• Max. rolling length (through feed): Indefinite (all models)
• Max. outer dia. thread rolls (mm): 200 | 200 | 210 | 230 | 250 | 270
• Spindle (bore) dia (mm): 54 | 54 | 69.85 | 64 | 76 | 85
• Max. rolling force: 8 Tons | 13 Tons | 15 Tons | 24 Tons | 30 Tons | 40 Tons
• Power for roll spindles: 3 H.P. 1400 RPM | 5 H.P. 1400 RPM | 7.5 H.P. 1400 RPM | 10 H.P. 960 RPM | 15 H.P. 960 RPM | 20 H.P. 960 RPM
• Power for hydraulic pump: 3 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P.
• Power for coolant pump: 0.1 H.P. (all models)

Technical specifications

• Models: IMC-25 | IMC-40 | IMC-50 | IMC-80 | IMC-100 | IMC-120
• Max. pitch (mm): 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 8
• Max. diameter feed (mm): 25 | 40 | 50 | 80 | 100 | 125
• Max. diameter through feed (mm): 16 | 28 | 35 | 40 | 64 | 76
• Max. rolling length feed (mm): 80 | 150 | 150 | 150 | 150 | 150
• Max. rolling length through feed: Indefinite
• Max. outer dia. thread rolls (mm): 200 | 200 | 210 | 230 | 250 | 270
• Spindle (bore) dia (mm): 54 | 54 | 69.85 | 64 | 76 | 85
• Max. rolling force: 8 t | 13 t | 15 t | 24 t | 30 t | 40 t
• Drive power and hydraulic pump ranges as listed above
