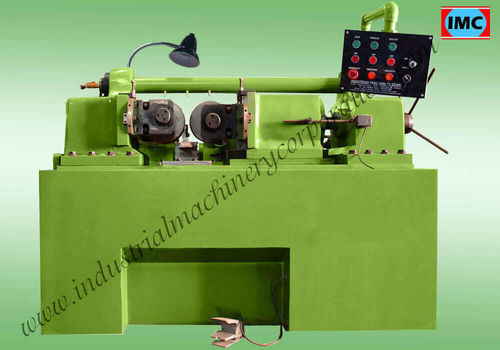

Cold thread rolling Hydraulic Thread Rolling Machine 2 Roll

for metal fabricationindustrial

Product overview
Industrial Machinery Corporation (IMC) Hydraulic Two-Roll Thread Rolling Machine is designed for cold-forming external threads on blanks for screws, bolts and tools. Thread rolling dies press the blank to form threads by plastic deformation, ensuring production suited to high-volume industrial applications.

Key features & benefits

• Cold-forming process for producing external threads on screws, bolts and tools.
• Built from high-grade materials for abrasion and water resistance where required.
• Fast production cycle with an industrial design focused on ease of operation and maintenance.
• Factory-tested units: quality checks and functional testing performed before dispatch.
• Available in multiple models to match bolt/bar/rod diameters and production requirements.

Available options

• Thread type: METRIC, BSW, UNC, ACME, Trapezoidal, Two Start, Three Start, Others, Don't Know Exactly
• Maximum thread length required: 50 MM, 100 MM, 150 MM, 200 MM, Unlimited, Others, Don't Know Exactly
• Maximum diameter of the job: 25 MM, 40 MM, 50 MM, 80 MM, 100 MM, 120 MM, Others, Don't Know Exactly
• Purchase timeframe: Immediately; Within a week; Within 15 days; Within a month; Others; Don't Know Exactly
• Expected price: user-specified input field

Specifications table
Hydraulic Machine Model | IMC-25 | IMC-40 | IMC-50 | IMC-80 | IMC-100 | IMC-120
Max. Pitch Can be Rolled (in mm) | 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 8
Max. Dia can be Rolled in feed (in mm) | 25 | 40 | 50 | 80 | 100 | 125
Max. Dia can be Through feed (in mm) | 16 | 28 | 35 | 40 | 64 | 76
Max. Rolling Length in feed (in mm) | 80 | 150 | 150 | 150 | 150 | 150
Max. Rolling Length Through feed | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite
Max. Outer Dia. Thread Rolls (in mm) | 200 | 200 | 210 | 230 | 250 | 270
Spindle Dia (Bore Dia) (in mm) | 54 | 54 | 69.85 | 64 | 76 | 85
Max. Rolling Force | 8 Tons | 13 Tons | 15 Tons | 24 Tons | 30 Tons | 40 Tons
Power for Roll Spindles | 3 H.P. 1400 RPM | 5 H.P. 1400 RPM | 7.5 H.P. 1400 RPM | 10 H.P. 960 RPM | 15 H.P. 960 RPM | 20 H.P. 960 RPM
Power for Hydraulic Pump | 3 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P.
Power for coolant pump | 0.1 H.P. | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P

Technical specifications

• Brand: Industrial Machinery Corporation (IMC).
• Models: IMC-25, IMC-40, IMC-50, IMC-80, IMC-100, IMC-120.
• Max. pitch (mm) varies by model: 2.5 → 8 mm (see table).
• Max. rolling diameter in feed (mm): 25, 40, 50, 80, 100, 125 by model.
• Max. through-feed diameter (mm): 16, 28, 35, 40, 64, 76 by model.
• Max. rolling length (feed): up to 150 mm (IMC-25: 80 mm); through-feed length: indefinite on all models.
• Max. outer diameter of thread rolls (mm): 200–270 depending on model.
• Spindle (bore) diameters (mm): 54, 69.85, 64, 76, 85 depending on model.
• Max. rolling force: 8–40 Tons depending on model.
• Drive power (roll spindles): from 3 H.P. to 20 H.P.; hydraulic pump power typically 3–7.5 H.P.; coolant pump 0.1 H.P.
• Primary application: forming external screw threads on blanks (screws, bolts, tools) via cold forming.
• Materials & build: fabricated from industrial-grade materials for durability, abrasion and water resistance as required.
• Operation: designed for high-volume production, ease of use and lower maintenance; machines are factory-tested prior to shipment.
