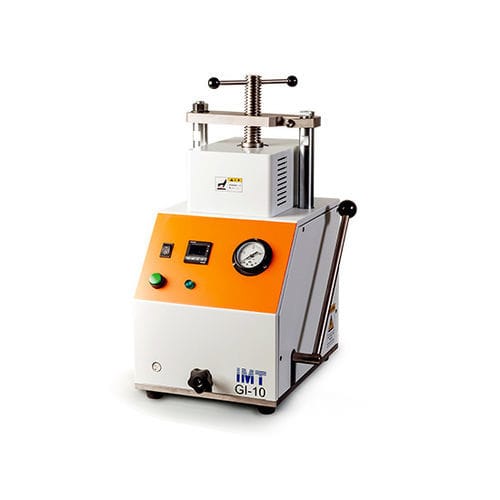

Metallographic sample mounting press GI-10

hothydraulicwater-cooled

Product Overview

• Designed for embedding metallographic specimens using transparent acrylic or epoxy resins
• Built-in coolant circuit for controlled cooling; water faucet opened by the operator
• Digital timer with auto-stop prevents heater being left on; thermo fuse provides full shutdown in fault conditions
• Manual hydraulic jack reduces mechanical failures and simplifies maintenance

Main Specifications

• Auto stop system with digital timer: timer-controlled heater shutdown; thermo fuse for safety
• Handy hydraulic jack system to minimize breakdowns
• Adjustable heating temperature; compatible with epoxy and acrylic resins
• Selectable specimen diameters: φ25, 30, 40 mm (special inch sizes available)

Standard Accessories

• Heat-resistant gloves
• Funnel
• Mold releasing agent
• Measuring spoon
• Wire brush

Machine Specifications
Model: GI-10
Power usage: Max. 1500W
Applied Pressure: 0 to 35 MPa (manual hydraulic jack)
Heating Temperature: Configurable between 0 and 200°C. Heater turns off when timer reaches 0 seconds
Heating Period: Digital auto-stop — start with green button → timer countdown begins once set temperature is reached → end buzzer notifies completion
Cooling: Built-in corrugated coolant tubing (water faucet opened by operator)
Specimen Size: Set selectable from φ25, 30, or 40 mm (special inch-size orders possible)
Power Supply: 100V
Dimensions (W×D×H) / Weight: 360×480×658 mm / 55 kg
