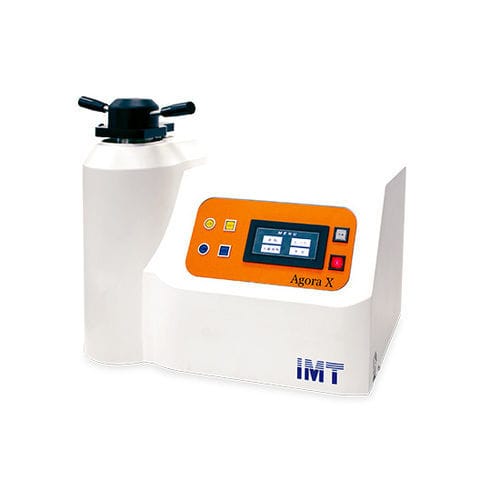

Metallographic sample mounting press Agora X

automatichotwater-cooled

Product Overview
The Agora X is an automatic mounting press designed to shorten the complete mounting cycle from heating to cooling. It supports epoxy resin mounting, stores up to 10 mounting programs, and features an easy-to-operate touch panel with analog buttons. The upper ram assembly is removable for cleaning.

Main Specifications

• Shortened pressing cycle from heating to cooling
• Easy-to-operate touch panel with analog buttons
• Epoxy resin mounting supported
• Memory input for various settings; up to 10 mounting conditions
• Removable upper ram lid and upper ram for cleaning

Machine Specifications

• Power consumption: 1500 W (Heater: 1300 W)
• Maximum applied pressure: 35 MPa (automatic control)
• Heating temperature range: 50 to 200 °C
• Cooling modes: A – cooling until set temperature; B – cooling for set time; automatic water cooling; flow rate adjustable; choose A or B
• Operation: automatic sequence from heating to cleaning; automatic lower ram lifting; touch panel with analog buttons; memory for up to 10 mounting conditions
• Supported mounting material: epoxy resin
• Specimen sizes supported: φ25, 30, 40 mm (inch sizes possible; custom sizes available on request)
• Power supply options: single-phase 100 V or single-phase 220 V
• Dimensions (W×D×H): 515×440×550 mm; Weight: 47 kg
