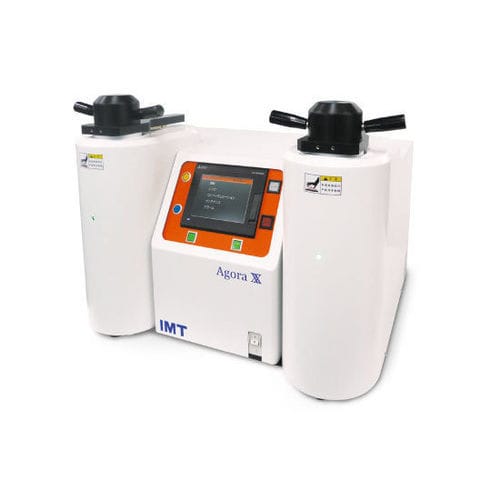

Water-cooled mounting press Agora XX

automaticfor metallographic sampleslaboratory

Product overview
Fast mounting cycle with two specimens pressed simultaneously. Independent selection of left and right specimen diameters. Intuitive color touch panel with physical buttons and easy-to-remove cover for maintenance.

Main Specifications

• Significantly reduced pressing time from heating to cooling
• Left and right specimen diameters configurable independently or set identically
• Color touch panel with analog buttons for straightforward operation
• Memory input for various settings with storage for up to 20 mounting conditions
• Removable cover for simplified maintenance
• Display of number of pressed specimens to monitor operating rate

Machine Specifications
Power usage: 3800 W (two cylinders pressed simultaneously)
Applied pressure: Max. 35 MPa; set pressure is automatically controlled
Heating temperature: 50 to 200 °C
Cooling: Mode A — cooling until set temperature is reached; Mode B — cooling for the entered time length; automatic water cooling with adjustable flow rate; choose A or B
Operation: Automatic lifting of lower ram; automatic heating-to-cooling sequence; memory for up to 20 mounting conditions
Specimen size: φ25, φ30, or φ40 mm (inch sizes possible)
Electrical: single-phase 220 V
Dimensions / Weight: W642 × D517 × H521 mm, 87 kg

Technical specifications

• Power usage: 3800 W (two cylinders pressed simultaneously)
• Applied pressure: Max. 35 MPa (automatic pressure control)
• Heating temperature range: 50–200 °C
• Cooling modes: A) Cooling until set temperature reached; B) Cooling for set time; automatic water cooling; adjustable flow rate
• Operation features: Automatic lower-ram lifting; automatic heating-to-cooling cycle; memory input for up to 20 mounting conditions
• Supported specimen sizes: φ25, φ30, φ40 mm (inch sizes possible)
• Electrical: single-phase 220 V
• Dimensions / Weight: W642 × D517 × H521 mm, 87 kg
