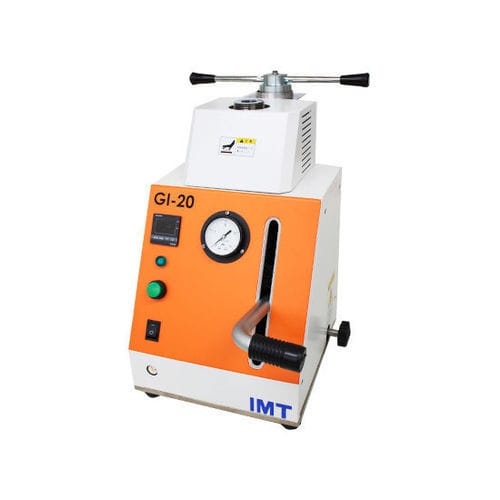

Hydraulic mounting press GI-20

hot

Product overview
Integrated upper lid and upper ram. Low-cost manual specimen mounting press with adjustable heater to maintain a constant temperature during pressing. Digital timer with auto-stop prevents leaving the heater on; thermo fuse provides safety shutdown in case of fault.

Main specifications

• Auto stop system with digital timer Prevents forgetting to turn off the heater; thermo fuse cuts power in case of malfunction.
• Handy hydraulic jack system Manual hydraulic jack reduces mechanical failures and simplifies maintenance.
• Adjustable heating temperature Heater configurable to maintain a stable temperature throughout pressing.

Standard accessories
Heat-resistant gloves, funnel, mold releasing agent, measuring spoon, wire brush

Machine specifications
Power usage
Φ40 mm: Max. 1000 W
Φ25/30 mm: Max. 860 W

Applied pressure
0 to 35 MPa (manual hydraulic jack)

Heating temperature
Configurable between 0 and 200°C. Heater turns off when the timer reaches 0 seconds.

Heating period
Digital auto-stop: press green start button → timer countdown begins when set temperature is reached → buzzer signals end.

Specimen size
Selectable: Φ25 mm, Φ30 mm, Φ40 mm (special inch sizes available on request).

Power
Single-phase 100 V / Single-phase 220 V

Dimensions / Weight
W355×D525×H515 mm, 35 kg

Technical specifications

• Model: GI-20
• Power usage: Φ40 mm 1000 W; Φ25/30 mm 860 W
• Applied pressure: 0–35 MPa (manual hydraulic jack)
• Heating temperature: 0–200°C (configurable)
• Heating control: Digital auto-stop with timer and buzzer; thermo fuse for safety
• Heating period control: Digital auto-stop; timer countdown begins once set temperature is reached
• Specimen sizes: Φ25 mm, Φ30 mm, Φ40 mm (special inch sizes possible)
• Power supply options: Single-phase 100 V or Single-phase 220 V
• Dimensions (W×D×H): 355×525×515 mm
• Weight: 35 kg
• Standard accessories: Heat-resistant gloves, funnel, mold releasing agent, measuring spoon, wire brush
