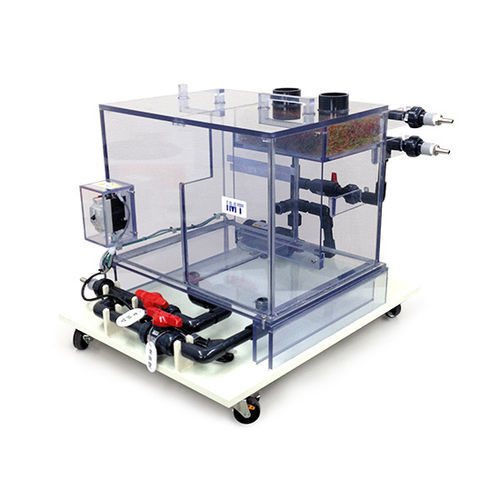

Circulator AQUA

Product overview
AQUA Coolant Circulator for coolant circulation and filtration. Available in B (polishing) and C types with built-in filters and a dual‑tank design that simplifies water exchange via a bottom drain valve. Tank capacity: 45 L.

Main specifications

• Primary filter captures coarse polishing debris. Washable Saran‑lock primary filter for reuse. The dual‑tank structure uses a first settling tank to retain large contaminants. Two outlets and two return ports allow connection of up to two polishing machines (configurable).
• ON/OFF switch with earth leakage breaker.
• 45 L tank capacity.

Machine specifications
Tank type and capacity: Dual‑tank structure, 45 L; the separated tanks cause drainage waste to settle in the first tank.
Water replacement and cleaning: Open the valve at the bottom of the tank to drain water.
Drainage filter: Strainer (No.100 filter) sold separately.
Water drain outlet: 1/2 with hose nipple.
Water return opening: Accepts 40A/A hose; outer diameter up to 40 mm.
Casters: Four included (self‑installation of casters and bolts required).
Switch: Earth leakage breaker (ON/OFF).
Power: Single‑phase 100 V, 50/60 Hz (includes 2 m power cord; grounding not included).
Dimensions (W×D×H): 650 × 520 × 560 mm.

Type
Available types: B type (for polishing) / C type.
Water outlet: B type — 1 opening; C type — 2 openings (two return openings).

Technical specifications

• Model name: AQUA Coolant Circulator
• Structure: Dual‑tank with settling first tank
• Tank capacity: 45 L
• Primary filter: Washable Saran‑lock
• Drainage filter option: Strainer (No.100) sold separately
• Water drain outlet: 1/2 with hose nipple
• Water return opening: Accepts 40A/A hose, up to 40 mm outer diameter
• Outlets/Returns: Two outlets and two return ports (for up to 2 polishing machines)
• Available types: B type (polishing), C type
• Casters: 4 included (self‑installation required)
• Switch: Earth leakage breaker (ON/OFF)
• Power supply: Single‑phase 100 V, 50/60 Hz (includes 2 m power cord; grounding not included)
• Dimensions: W650 × D520 × H560 mm
