FULL ISOLATION
BLEED OR VENT PORT
PTFE OR GRAFOIL PACKING
6000 psi CWP - SEE THE DIAGRAM
LIQUID, STEAM, GAS & VACUUM SERVICES
Indumart 2-Valve Manifolds are used in fluid pressure applications. They are connected to the process and to the pressure instruments directly or via tubing or piping. They hâve one V2" isolating valve and one vent or drain valve with %" female outlet. Other connections may be ordered as spécial.
These manifolds can be made of stainless Steel or carbon Steel with PTFE or Grafoil packing. They are suitable for both positive and négative pressures in liquid and gas services. Their important applications are with pressure gauges, pressure transmitters and switches.

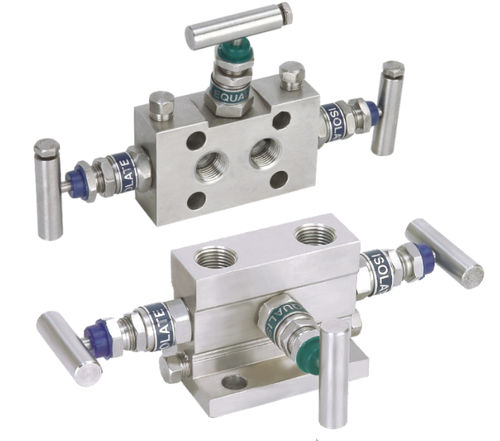

Indumart 3-Valve Manifolds are used in applications with differential pressure gauges, DPtransmitters or switches. They are connected to the process and to the instruments, directly or via tubing or piping.
Two isolation valves, one equalizer valve and two ¼" NPTF bleeds are provided. These manifolds can be made of stainless steel or carbon steel with PTFE or Grafoil packing. They are suitable for both positive and negative pressures in liquid and gas services.
The model V3R2 is an exception. It is a more compact model and is mostly used for differential pressure gauge applications. The process and instrument connections are ¼" NPTF and this design does not include drains/bleeds.
Indumart 5-Valve Manifolds are used in differential pressure applications with pressure gauges or with DP transmitters and switches. They are connected to the process and to the instrument, directly or via tubing or piping
