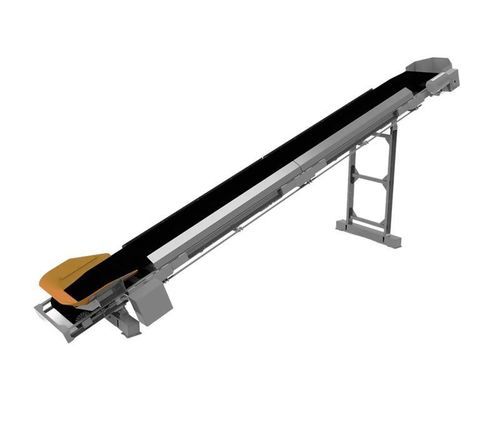

Belt conveyor

inclinedstraighttransport

General information
This fixed-height, fixed-angle belt conveyor is a basic, stationary-type unit in our conveyor range. It is less mobile than adjustable models and is intended for prolonged use at a single location; relocation is possible but requires longer setup. The modular construction allows later addition of accessories or conversion to adjustable configurations.

Product features

• Standard lengths: 5 m, 8 m and 11 m
• Standard width: 800 mm (other widths on request)
• Custom lengths and widths available on special request
• Belt speed: fixed, optional speed control available
• Optional water pipeline at conveyor outlet
• Powder-coated components for enhanced weather resistance
• Frame and structure in high-quality steel for heavy-duty use

Advantages

• Stable material transport: designed for continuous, uniform throughput
• Heavy-duty construction: steel frame suited to demanding site conditions
• Low maintenance and high availability: simple mechanical layout and proven components
• Controlled discharge and reduced spillage: optimized belt tracking and discharge points
• Easy integration: compatible with batching plants, mobile mixers and material storage systems

FAQ (selected)

• Which materials can be transported? Aggregates, sand, gravel, crushed stone, recycled materials and similar bulk materials.
• Can the belt conveyor be customized? Yes — length, width, inclination, discharge height, belt type and drive configuration can be specified.
• Integration with batching or mixing plants? Yes — designed for integration with concrete batching plants, mobile mixing plants and other material handling equipment.
• Maintenance required? Minimal: routine belt inspection, roller lubrication and periodic checks of the drive unit.
• Installation time? No major civil works required; once positioned, mechanical installation is quick and the conveyor can be operational in a short time.

Technical specifications

• Standard lengths: 5 m, 8 m, 11 m
• Standard width: 800 mm (other widths on request)
• Belt speed: fixed (option for speed control)
• Inclination: fixed height and angle (this model)
• Optional water pipeline at outlet
• Construction material: high-quality steel
• Surface finish: powder coated for weather resistance
• Suitable materials: aggregates, sand, gravel, crushed stone, recycled materials
• Maintenance: belt inspection, roller lubrication, periodic drive unit checks
