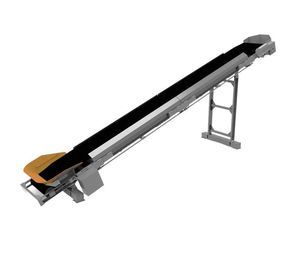

Belt conveyor

with adjustable slopestraighttransport

General information
These belt conveyors feature a modular, freestanding base allowing rapid on-site positioning and easy relocation without ground fixing. The movable support on the base enables quick adjustment of conveyor height and inclination to match discharge points and to integrate with mobile mixing or batching plants.

Features / Advantages

• Stable and consistent material flow for continuous operation.
• Durable steel construction designed for heavy-duty aggregate handling.
• Low maintenance design with proven components to maximize uptime.
• Controlled discharge and efficient belt tracking to reduce spillage and dust.
• Simple integration with mobile mixing plants, concrete batching plants and material storage systems.

Product details
Standard lengths: 5 m, 8 m and 11 m; standard belt width: 800 mm. Other lengths and widths available on request. Belt speed can be fixed or supplied with an optional speed control. An optional water pipeline at the outlet allows adding water to concrete during discharge. All components are powder coated for weather resistance and long service life.

Base and mobility / Accessories

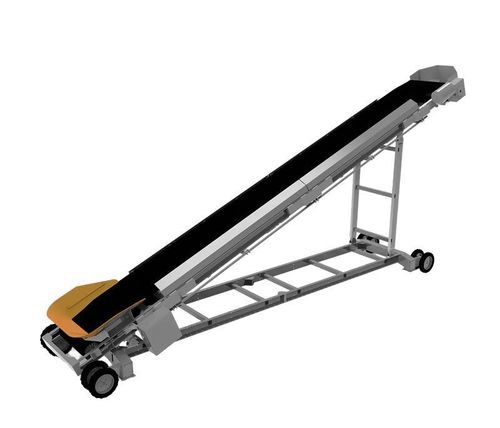

The freestanding base accepts accessories such as wheels (for lateral or fore/aft movement), a rear towing hook and an extended foot for extra stability. With wheels and a hook the conveyor can be towed by a truck or machine, providing a fully mobile solution tailored to site needs.

FAQ

• Which materials can be transported using belt conveyors? Aggregates, sand, gravel, crushed stone, recycled materials and similar bulk materials.
• Can the belt conveyor be customized? Yes — length, width, inclination, discharge height, belt type and drive configuration can be tailored to project requirements.
• Can the belt conveyor be integrated with a batching plant or mobile mixing plant? Yes — designed for easy integration with concrete batching plants and mobile mixing plants.
• What maintenance is required? Routine belt inspection, roller lubrication and periodic drive-unit checks.
• How long does installation take? No special civil works required; typical on-site positioning and commissioning take only minutes.

Technical specifications

• Standard lengths: 5 m, 8 m, 11 m.
• Standard width: 800 mm; other widths on request.
• Belt speed: fixed (standard) or optional speed control.
• Optional water pipeline at conveyor outlet.
• Base: freestanding; movable support for height/angle adjustment.
• Accessories: wheels, towing hook, extended foot.
• Construction: high-quality steel; powder coated for weather resistance.
• Integration: compatible with mobile mixing plants and concrete batching plants.
• Maintenance: belt inspection, roller lubrication, periodic drive checks.
• Installation: fast on-site positioning; ready in minutes in typical conditions.
