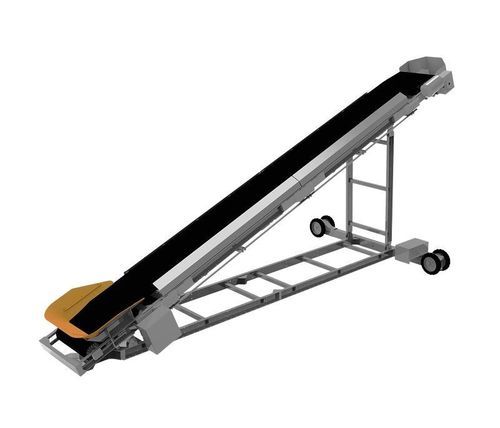

Belt conveyor

inclinedstraighttransport

General information
Base units of this type feature a rear rotation foot and motor-driven wheels at the front. Activating the drive causes the wheels to pivot the conveyor around the rear foot. The foot is positioned under the belt inlet so material remains on the belt during rotation. Optional water pipeline can add water to concrete at the conveyor outlet for dosing applications.

Product features

• Rear rotation foot and motor-driven front wheels enabling automatic rotation of the conveyor.
• Foot placed under the belt entry point to prevent material spillage during rotation.
• Standard lengths: 5 m, 8 m and 11 m; custom lengths available on request.
• Standard belt width: 800 mm; other widths available on request.
• Belt speed: fixed standard or optional speed control.
• Optional pipeline for adding water to concrete at the outlet.
• Quick height and angle adjustment by sliding the support along the base.
• Mobile, stand-alone design without need for permanent fixing.
• Powder-coated steel components for weather resistance.
• Designed for low maintenance and high availability.

Advantages

• Stable material flow for continuous operation and uniform discharge.
• Robust construction for heavy-duty site conditions.
• Low maintenance thanks to simple mechanical design and proven components.
• Minimized spillage and dust through optimized discharge and belt tracking.
• Easy integration with mobile mixing plants and batching systems.

FAQ

• Which materials can be transported using belt conveyors? - Aggregates, sand, gravel, crushed stone, recycled materials and similar bulk materials.
• Can the belt conveyor be customized? - Yes. Length, width, inclination, discharge height, belt type and drive configuration can be customized.
• Can the belt conveyor be integrated with a batching plant or mobile mixing plant? - Yes. It can be integrated with concrete batching plants and mobile mixing plants.
• What maintenance is required? - Minimal: belt inspection, roller lubrication and periodic drive unit checks.
• How long does installation take? - No special civil works are required. Once positioned, installation is quick and the conveyor is often ready in minutes.

Technical specifications

• Standard lengths: 5 m, 8 m, 11 m (custom lengths on request).
• Standard belt width: 800 mm (other widths on request).
• Belt speed: fixed (standard) or optional speed control.
• Rotation mechanism: rear rotation foot and motor-driven front wheels.
• Water pipeline: optional for dosing water to concrete at the outlet.
• Adjustability: quick height and angle adjustment via movable support along the base.
• Mobility: stand-alone mobile solution; no permanent fixing required.
• Construction: powder-coated steel components for weather resistance.
• Maintenance: minimal — belt inspection, roller lubrication, periodic drive checks.
