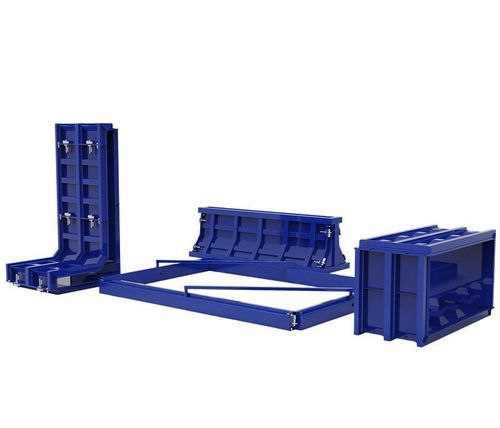

Standard mold base Blue Molds®

precision

General information
Blue Molds® modular steel moulds are designed for efficient production of interlocking concrete elements. With a proven modular partition and interlocking system, these moulds support high-volume precast manufacturing and fast demoulding procedures. The product line serves manufacturers of interlocking blocks, road barriers, retaining elements and concrete slabs.

Moulds for Concrete Interlocking Blocks
High-precision steel moulds manufactured for producing interlocking concrete blocks in multiple sizes and configurations. The modular partitions allow rapid reconfiguration to produce elements with different geometries and functions. Blocks assembled on site require no mortar, enabling reuse and flexible layout.

Road Barrier Moulds
Moulds for producing concrete road barriers (Jersey barriers) with reinforced cores and options for cast-in anchors or forklift hole formers. Barriers produced are suitable for temporary and permanent applications and designed for reliable crash protection and relocation when required.

Typical applications

• Traffic lane separation
• Perimeter security
• Construction zone protection
• Event management
• Traffic redirection and control
• Temporary flood defence
• Preventing unauthorized access
• Parking bays

Retaining Wall L-Moulds
Specialised L-shaped moulds for producing precast retaining blocks or panels. Inserts adapt standard mould sizes to produce L-blocks for earth retention and containment tasks.

Steel Moulds for Concrete Slabs
Engineered steel moulds for manufacturing precast concrete slabs with consistent thickness and surface finish. Suitable for a range of slab sizes and production rates.

Advantages

• Longest service life: built for intensive use in industrial production
• Maximum dimensional accuracy: consistent block geometry for fast assembly
• Superior surface finish: powder-coated surfaces for improved release and appearance
• Heavy-duty construction: manufactured from high-grade structural steel to retain geometry
• Immediate availability: wide range of standard moulds kept in stock for rapid delivery

FAQ – Key points

• Materials: moulds are made of high-quality structural steel; New Gen 2024 moulds use 4 mm steel plates.
• Coating: powder coating provides corrosion protection and easier cleaning.
• Durability & sustainability: engineered for intensive use and 100% recyclable at end of life.
• Project documentation: static calculations and project documentation are provided per project and must meet local regulations.
• Handling solutions: blocks handled by mechanical grabs, magnets or anchors; mould design supports safe handling.
• Operation: typical mould design comprises two interlocking profiles for easy opening and demoulding.

Technical specifications

• Brand: Blue Molds®
• Material: high-quality structural steel; New Gen (2024) uses 4 mm steel plates
• Finish: powder coating to protect against rust
• Design: modular partition system; efficient interlocking system for interlocking blocks
• Product types: interlocking block moulds, road barrier moulds (Jersey barriers), retaining wall L-moulds, steel moulds for concrete slabs
• Reinforcement options: reinforced cores for road barriers; cast-in anchors or forklift hole formers available
• Durability: heavy-duty construction for long service life and geometry retention
• Quality: high dimensional accuracy and superior surface finish for precast concrete elements
• Sustainability: products are 100% recyclable at end of life
• Availability: wide range of standard moulds kept in stock; presence in over 60 markets worldwide
