Thermal flow sensor FDS.A

massfor process monitoringgas

Product Overview
Flow range 0 to 100 m/s; operating temperature -20 °C to +150 °C. Thermal mass gas flow sensor suited to industrial monitoring, gas dosing and inline measurement.

Product Description

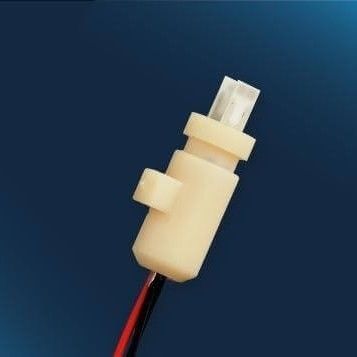

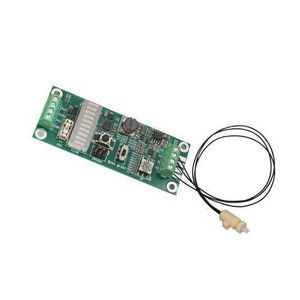

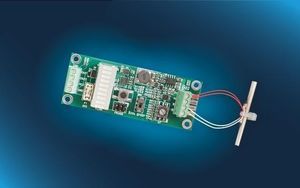

Gas flow sensor with decoupled heater and temperature elements. Hotmelt housing dimensions and element resistances identical to FS7. Compatible with iST Flow demo board. Thermal sensing on a compact ceramic substrate allows straightforward mechanical and fluidic integration.

Benefits & Characteristics of the FDS.A gas flow sensor

• Minimized cross-talk for high sensitivity at low flow rates
• Long-term stable thin-film platinum sensing technology
• No moving parts for increased operational reliability
• Suitable for various technical gases and industrial applications
• Simple fluidic and electronic integration with standard wire leads
• Easy calibration and reproducible response across a wide dynamic range

FS gas flow sensor family (summary)
iST FS thermal mass flow sensors combine sensitivity at low flows with a wide measuring range and fast response. Heating and temperature sensing structures are protected by a glass coating on a ceramic chip enabling compact integration into different channel geometries. Applications include medical gas monitoring, industrial gas dosing systems and continuous filter performance checks. Custom adaptations and housing assembly options available.

Pricing (per piece)
Quantity (pieces) - Price (per piece)
1-9 - CHF 40.69
10-49 - CHF 28.33
50-100 - CHF 25.24

Technical specifications

• Product name (variant): FDS.A.1L.195
• Measured medium: Gas flow
• Flow direction: One direction (anemometric)
• Operating temperature range: -20 °C to +150 °C
• Chip size / housing dimensions: ø6 x 14 mm housing; 4 x 2.4 mm (chip outside housing)
• Connection type: Cu/Ag-stranded wires AWG 30/7, PTFE insulated, 2x red (heater), 2x black (temperature)
• Wire dimensions: 195 mm length from housing edge, 5 mm stripped
• Flow range (full bridge mode): 0 to 100 m/s
• Flow range (CTA mode): 0 to 100 m/s
• Response time t63: ~200 ms (step 0 to 10000 sccm)
• Response sensitivity: 0.01 m/s
• Substrate: Ceramic
• Product code: 155846
