Sensor evaluation kit FS/OOL + OOL

Overview

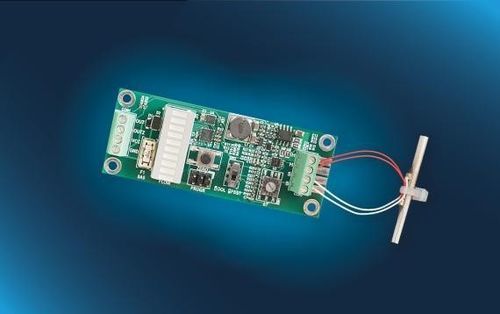

Flow Eval Board FS/OOL with OOL liquid sensor. Evaluation electronics for anemometric (thermal) flow sensors, designed for continuous monitoring, leakage detection and flow measurement in liquid systems.

Product name

• Flow Eval Board FS/OOL + OOL liquid sensor

Detailed description

• Analog CTA circuit with voltage output; non-linear signal relative to power (without temperature compensation). Shipped with OOL liquid mass flow sensor (4 mm o.D.). Variable sensitivity settings.
• Compact, corrosion-resistant module suitable for flow monitoring and leakage detection of various liquids.
• Suitable for a wide variety of applications including cooling circuits, dosing pumps, white goods, CIP systems for the food industry, agricultural machinery, industrial wet vacuum cleaners, and gear oil supply machines used in metalworking and mining.
• Allows continuous monitoring for temperature control, pumping, filling or leakage detection. Wide dynamic range with high sensitivity at low flow rates makes the OOL flow module suitable for drip detection and early water leakage warning systems.

Technical specifications

• Product Name: Flow Eval Board FS/OOL + OOL liquid sensor
• Operating temperature range: -40 °C to +85 °C (module)
• Housing dimensions: 40 x 4 (3.7) mm L x o.D. (i.D)
• Flow channel inner dimensions: Ø 3.7 mm
• Flow channel length: 40.0 mm
• Flow range: 0 to 4 m/s
• Fluidic connection: Tubing with 4 mm inner diameter
• Wetted materials: Stainless Steel 1.4301
• Connection type: PCB connector
• Supply voltage: 5 V DC ±5%
• Output signal: 0 V to 10 V analog
• Product Old code: 160.00026
• Product code: 104021
