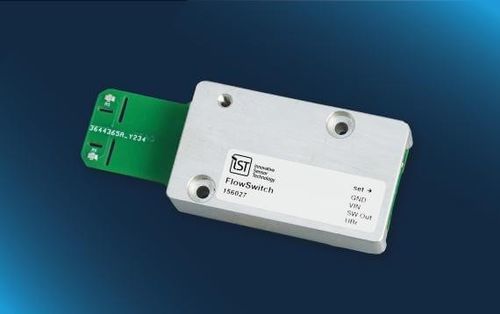

Hot-wire flow switch V1.0

for airfor non-aggressive gasesfor gas

Overview
The Flow Switch Module V1.0 is an anemometric flow switch for air and non-corrosive, non-flammable gases. It provides a switched-ground output for direct control or alarm functions in industrial monitoring and HVAC applications.

Application
The module monitors and controls gas flow rates, issuing trip signals to activate ventilation, safety interlocks or alarms. Suitable for integration in HVAC, environmental monitoring and process control systems where compact dimensions and fast response are required.

Product name
Flow Switch Module V1.0

Pricing
Quantity (pieces) | Price (per piece)
1-9 | CHF 113.30
10-49 | CHF 108.15
50-100 | CHF 99.91

Related document
Data sheet Flow Switch Module (PDF available)

Technical specifications

• Product Name: Flow Switch Module V1.0
• Measured medium: Gas Flow (air / non-corrosive gases)
• Operating temperature range: -20 °C to +80 °C
• Housing dimensions: 30 x 76 x 10 mm
• Connection type: S4B-ZR-SM4A-TF / JST
• Flow range (full bridge mode): 0.1 to 15 m/s
• Response time t63: < 3 s
• Weight: 30 g
• Supply voltage: 24 V (18..28 V)
• Output signal: switched ground, max 0.7 A / 60 V
• Product code: 156027
