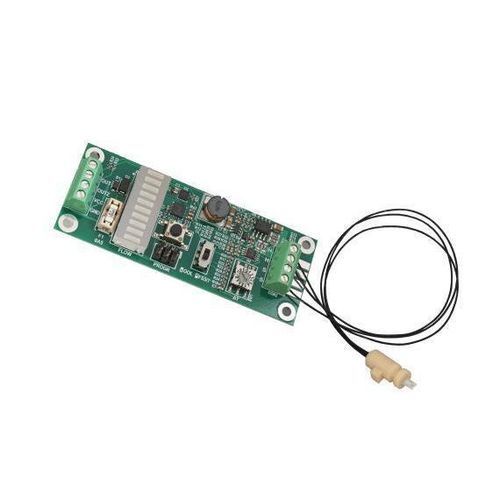

Evaluation board FS7 EvaKit

Product overview
Evaluation electronics for anemometric (thermal) gas flow sensors. The Flow Eval Board FS/OOL paired with the FS7 sensor provides a conditioned analog output and a convenient PCB connection for prototyping and application testing. Suited for integration and functional validation of FS7 sensors in gas-flow measurement systems.

Product name
Flow Eval Board FS/OOL + FS7 gas sensor

Key features

• Measured medium: Gas flow
• Operating temperature range (module): -40 °C to +85 °C
• Flow range: 0 m/s to 50 m/s
• Connection type: PCB connector
• Supply voltage: 5V DC ±5%
• Output signal: 0 V to 10 V analog
• Housing: 45 x 25 mm

Shop information

• Price per piece (quantity 1-5): CHF 128.75
• Quantity available in stock: 5 pieces

Technical specifications

• Product name (display): Flow Eval Board FS/OOL + FS7 gas sensor
• Measured medium: Gas flow
• Operating temperature range (module): -40 °C to +85 °C
• Flow range: 0 m/s to 50 m/s
• Connection type: PCB connector
• Supply voltage: 5V DC ±5%
• Output signal: 0 V to 10 V analog
• Housing dimensions: 45 x 25 mm
• Product old code: 160.00023
• Product code: 104018
