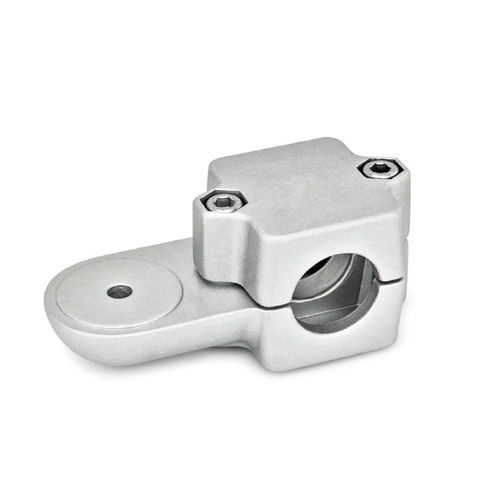

Round tube connector LMQ
squarecast aluminumadjustable

round tube connector
round tube connector
round tube connector
round tube connector
round tube connector
round tube connector
round tube connector
Add to favorites
Compare this product


Characteristics

Structure
round, square
Material
cast aluminum
Other characteristics
adjustable, swivel bearing
Diameter

Min.: 40 mm
(1.575 in)

Max.: 50 mm
(1.969 in)

Description

Swivel clamps of die-cast aluminum have a split clamping point with round or square crosssection that has been partially machined by cutting methods. The fastening lug has a smooth surface. The fastening lug is centered and perpendicular to the axis of the bore, which receives typically available construction tubes via multiple ribs in the cross-section. The screw point of the fastening lug receives a hex head or hex socket cap screw or a lock nut for fastening any additional parts. At the clamping point, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping. By combining swivel clamps that have identical fastening lugs, it is possible to assemble any type of joint clamp. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tooloperated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. RoHS-compliant product
