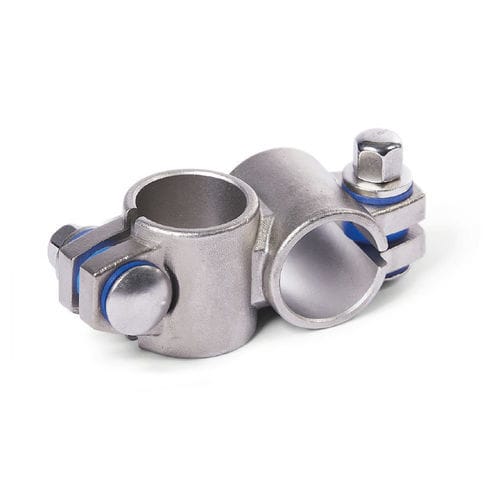

Cross tube connector KE series

stainless steeladjustable

Cross clamps KE of matt blasted precision-cast stainless steel have a slitted clamping point machined by cutting methods. The bores of the clamping points are offset in the plane and arranged at an angle of 90°. They receive typically available construction tubes with full surface contact over the entire cross-section of the bore. At the screw points, carriage bolts together with cap nuts or adjustable hand levers reduce the bore cross-section for clamping. Type B is equipped with seals at the screw points. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HEK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. On request Clamping points with special diameter Screw points with hex head screws or mixed screw / hand lever elements
