Round tube connector LKQ.E series

aluminumadjustablesliding

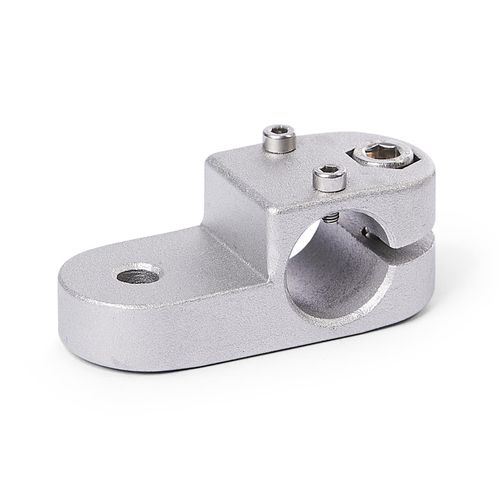

Swivel linear unit connectors LKQ.E of die-cast aluminum have a slitted guide element bore machined by cutting methods, with or without sliding insert, as well as a smooth fastening lug, which is centered and perpendicular to the guide element bore. Together with the guide tube of the linear unit, the guide element bore forms a solid linear round guide mechanism that can be adjusted and clamped for low play. Drive keys transmit the linear movement of the linear unit to the linear unit connector. Depending on the design, the part to be moved is fastened to the guide element or the guide element itself is installed at the place of use such that the entire linear unit moves together. At the screw point, a hex socket cap screw or an adjustable hand lever reduces size of the guide element bore. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. On request Surface ball-burnished, anodized or powder-coated in other RAL colors
