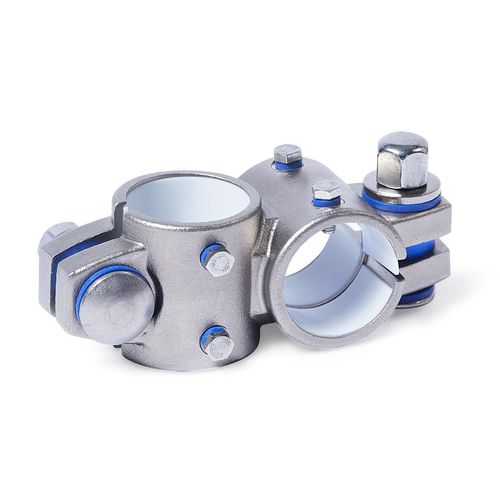

Round tube connector KE.Z
crossstainless steelcast

round tube connector
round tube connector
round tube connector
round tube connector
Add to favorites
Compare this product


Characteristics

Structure
round, cross
Material
stainless steel, cast
Other characteristics
adjustable, sliding
Diameter

Max.: 50 mm
(1.969 in)

Min.: 30 mm
(1.181 in)

Description

Cross linear unit connectors KE.Z of precision-cast stainless steel have slitted clamping points and guide element bores machined by cutting methods and equipped with a sliding insert. The bores are offset in the plane and arranged at an angle of 90°. Together with the guide tube of the linear unit, the guide element bores form a solid linear round guide mechanism that can be adjusted and clamped for low play. Drive keys transmit the linear movement of the linear unit to the linear unit connector. Depending on the design, the part to be moved is fastened to the guide element or the guide element itself is installed at the place of use such that the entire linear unit moves together. At the screw points, carriage bolts together with cap nuts or adjustable hand levers reduce the guide element bore or clamping point size. Type B is equipped with seals at the screw points. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HEK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.
