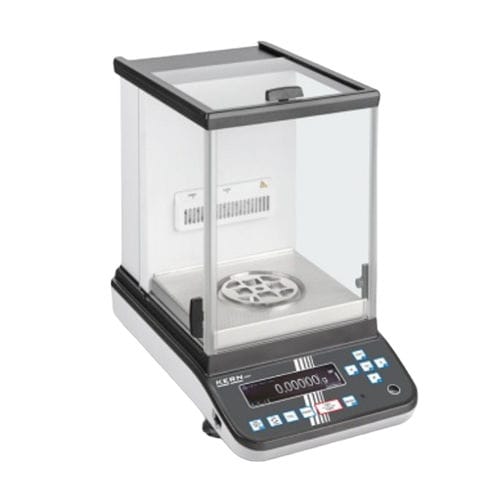

Electronic weighing machine ABP
for dosingfor pharmaceutical productsstainless steel

Electronic weighing machine - ABP - Instrumentys - for dosing / for pharmaceutical products / stainless steel
Electronic weighing machine - ABP - Instrumentys - for dosing / for pharmaceutical products / stainless steel
Electronic weighing machine - ABP - Instrumentys - for dosing / for pharmaceutical products / stainless steel - image - 2
Electronic weighing machine - ABP - Instrumentys - for dosing / for pharmaceutical products / stainless steel - image - 3
Electronic weighing machine - ABP - Instrumentys - for dosing / for pharmaceutical products / stainless steel - image - 4
Electronic weighing machine - ABP - Instrumentys - for dosing / for pharmaceutical products / stainless steel - image - 5
Electronic weighing machine - ABP - Instrumentys - for dosing / for pharmaceutical products / stainless steel - image - 6
Add to favorites
Compare this product
Go to the Instrumentys website for more information

Characteristics

Type
electronic
Applications
for dosing, for pharmaceutical products
Other characteristics
stainless steel

Description

General description
  • Analytical balance for laboratories, ABP (PREMIUM) series designed for precision weighing.
  • Sensor technology: Single-Cell (single-piece load cell) providing temperature-stable behaviour and high mechanical robustness.
  • Self-illuminated LED display with 14 mm digit height for easy reading even in low light.
  • Stainless steel weighing pan, diameter 91 mm.
  • Large glass draft shield to minimise disturbances during fine weighing.


Functions and use
  • Navigation cross for quick menu navigation.
  • Internal adjustment program (internal calibration).
  • Manual or automatic storage of minimum weight.
  • Dosing assistance: high-stability mode and selectable filtering parameters.
  • Easy creation and documentation of formulations with tare and print function.
  • Individual user parameters: up to 10 user profiles can be stored.
  • Automatic data outputs to PC or printer.
  • Compliant with U.S. FDA 21 CFR Part 11.


Performance and behaviour
  • Short stabilization time: approx. 2 s for models with [d] = 0.1 mg; approx. 8 s for models with [d] = 0.01 mg (laboratory conditions).
  • High assurance against eccentric loading (resistance to off-centre load application errors).
  • High mechanical robustness for intensive laboratory use.


Dimensions and weight
  • Weighing pan dimensions (stainless): Ø 91 mm.
  • Total dimensions (including draft shield) L×D×H: 213 × 407 × 344 mm.
  • Weighing chamber L×D×H: 166 × 156 × 220 mm.
  • Approx. net weight: 8 kg.
  • Permitted ambient temperature: 10 °C to 30 °C.


Remarks
  • Multiple variants/models available with different capacity ranges and resolutions (see technical specifications below).


Technical characteristics / specifications
  • Series / model: ABP (variants: ABP 100-5M, ABP 200-5M, ABP-100-4M, ABP-200-4M, ABP-300-4M, ABP-100-5DM, ABP-200-5DM).
  • Sensor technology: Single-Cell (monoblock sensor).
  • Display: self-illuminated LED, 14 mm digit height.
  • Pan: stainless steel, diameter 91 mm.
  • Draft shield: large glass enclosure.
  • Total dimensions: 213 × 407 × 344 mm (L×D×H).
  • Weighing chamber: 166 × 156 × 220 mm (L×D×H).
  • Net weight: approx. 8 kg.
  • Stabilization time: approx. 2 s (models d = 0.1 mg), approx. 8 s (models d = 0.01 mg).
  • Functions: internal calibration, manual/automatic minimum-weight storage, dosing aid, tare, print, user profiles (up to 10 users).
  • Outputs: data interface(s) for PC / printer (automatic outputs).
  • Compliance: U.S. FDA 21 CFR Part 11.
  • Operating temperature range: 10 °C – 30 °C.
