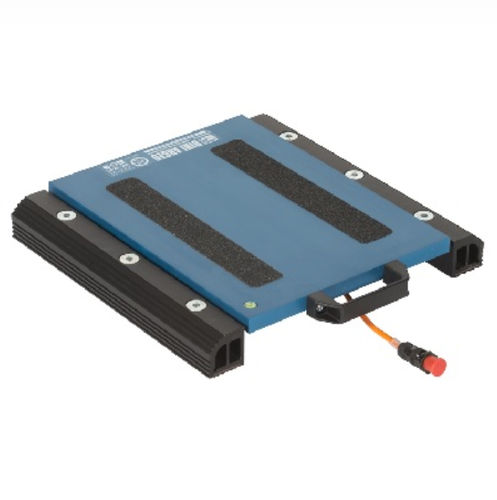

Corrosion-resistant wheel scale WWSB series

steelfor aircrafthigh-resolution

Description
The WWSB wheel scale features a 400 x 300 mm platform designed for small vehicles such as cars, carts, vans and ultralight aircraft. Constructed with a reinforced aluminum frame and stainless steel load cells, the platform provides precise measurements and is suitable for harsh environments. The weighing surface measures 300 x 215 mm and the unit is supplied with a 10 m PUR cable with IP68/M12 connector. Available in CE-M approved version for legal-for-trade weighing and in a high-resolution version.

Key features

• Platform dimensions: 400 x 300 mm
• Weighing surface: 300 x 215 mm
• Reinforced aluminum frame
• Stainless steel load cells, IP68 protection
• 10 m PUR cable with IP68 connector and M12
• Available in CE-M approved and high-resolution versions

Advantages

• Accurate measurements for vehicle weighing tasks
• Design compatible with demanding operating conditions
• Simple handling and connection to a weight indicator
• Options for legal-for-trade weighing and high-resolution outputs

Models and capacities

• WWSB600-2 — Dimensions: 400x300x58 / Capacity: 600 kg / d: 0.2 kg
• WWSB1500-2 — Dimensions: 400x300x58 / Capacity: 1500 kg / d: 0.5 kg
• WWSB3T-2 — Dimensions: 400x300x58 / Capacity: 3000 kg / d: 1 kg
• WWSB6T-2 — Dimensions: 400x300x58 / Capacity: 6000 kg / d: 2 kg
• WWSB8T-2 — Dimensions: 400x300x58 / Capacity: 8000 kg / d: 5 kg

Version with approval (CE-M)

• WWSB600-2-M — Dimensions: 400x300x58 / Capacity: 600 kg / d: 0.2 kg (d (M): 0.2 kg)
• WWSB1500-2-M — Dimensions: 400x300x58 / Capacity: 1500 kg / d: 0.5 kg (d (M): 0.5 kg)
• WWSB3T-2-M — Dimensions: 400x300x58 / Capacity: 3000 kg / d: 1 kg (d (M): 1 kg)
• WWSB6T-2-M — Dimensions: 400x300x58 / Capacity: 6000 kg / d: 2 kg (d (M): 2 kg)
• WWSB8T-2-M — Dimensions: 400x300x58 / Capacity: 8000 kg / d: 5 kg (d (M): 5 kg)

Technical characteristics / specifications

• Available capacity ranges: 0…600 kg to 0…8 000 kg
• Platform dimensions: 400 x 300 x 58 mm
• Useful weighing surface: 300 x 215 mm
• Materials: reinforced aluminum frame, stainless steel load cells
• Load cell protection rating: IP68
• Cable: 10 m PUR with IP68 connector and M12
• Available versions: standard, high-resolution, CE-M approved
• Price indicated: price excl. VAT per platform (without indicator)
